Container asphalt mixing plant
Container asphalt mixing plant

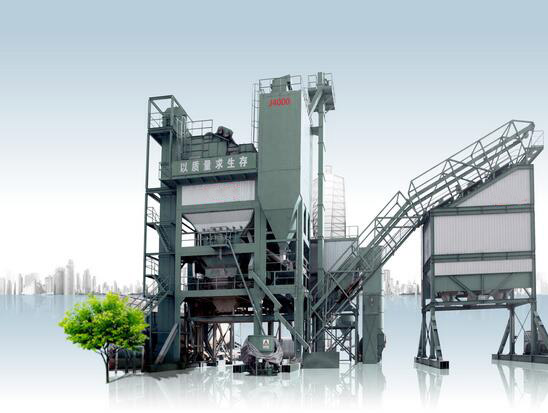

J4000
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Technical Parameter | J4000 | |
|---|---|---|
| Production Capacity (t/h) | 280-320 | |
| Mixer Capacity (kg) | 4000 | |
| Measuring Accuracy | Aggregate | ±0.3% |
| Filler | ±0.2% | |
| Bitumen | ±0.1% | |
| Temperature Control Accuracy (℃） | ≦±5 | |
| Dust Collecting Efficiency (mg/Nm³) | ≦20 | |
| Total Power (kw) | 859 | |
| Cold Feeder | Length*Width (m) | 4.22*2.5 |
| Hopper Capacity (m³) | 15.5 | |
| Collecting Belt | Width (mm) | 800 |
| Power (kw) | 7.5 | |
| Drying Drum | Diameter*Length (m) | 2.8*12 |
| Power (kw) | 4*30 | |
| Vibrating Screen | Length*Width (m) | 6.6*3.4 |
| Power (kw) | 2*18.5 | |
| Scale Hopper Capacity | Aggregate (kg) | 4500 |
| Filler (kg) | 600 | |
| Bitumen (kg) | 480 | |
| Mixer | Capacity (kg) | 4000 |
| Power (kw) | 2*55 | |
