Container asphalt mixing plant
Container asphalt mixing plant

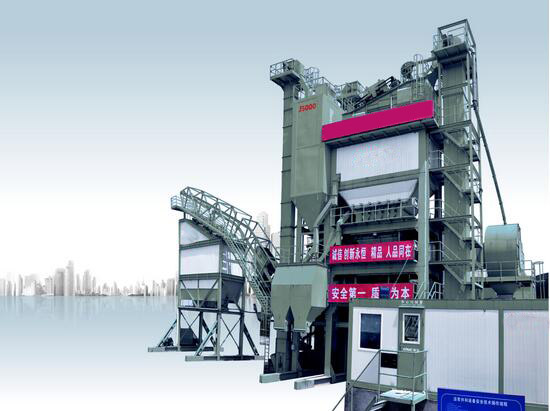

J5000
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Technical Parameter | J5000 | |
|---|---|---|
| Production Capacity (t/h) | 360-400 | |
| Mixer Capacity (kg) | 5000 | |
| Measuring Accuracy | Aggregate | ±0.3% |
| Filler | ±0.2% | |
| Bitumen | ±0.1% | |
| Temperature Control Accuracy (℃） | ≦±5 | |
| Dust Collecting Efficiency (mg/Nm³) | ≦20 | |
| Total Power (kw) | 1052 | |
| Cold Feeder | Length*Width (m) | 4.22*2.5 |
| Hopper Capacity (m³) | 16 | |
| Collecting Belt | Width (mm) | 800 |
| Power (kw) | 11 | |
| Drying Drum | Diameter*Length (m) | 3*12 |
| Power (kw) | 4*37 | |
| Vibrating Screen | Length*Width (m) | 7.4*3.4 |
| Power (kw) | 2*18.5 | |
| Scale Hopper Capacity | Aggregate (kg) | 5500 |
| Filler (kg) | 750 | |
| Bitumen (kg) | 600 | |
| Mixer | Capacity (kg) | 5000 |
| Power (kw) | 2*75 | |
