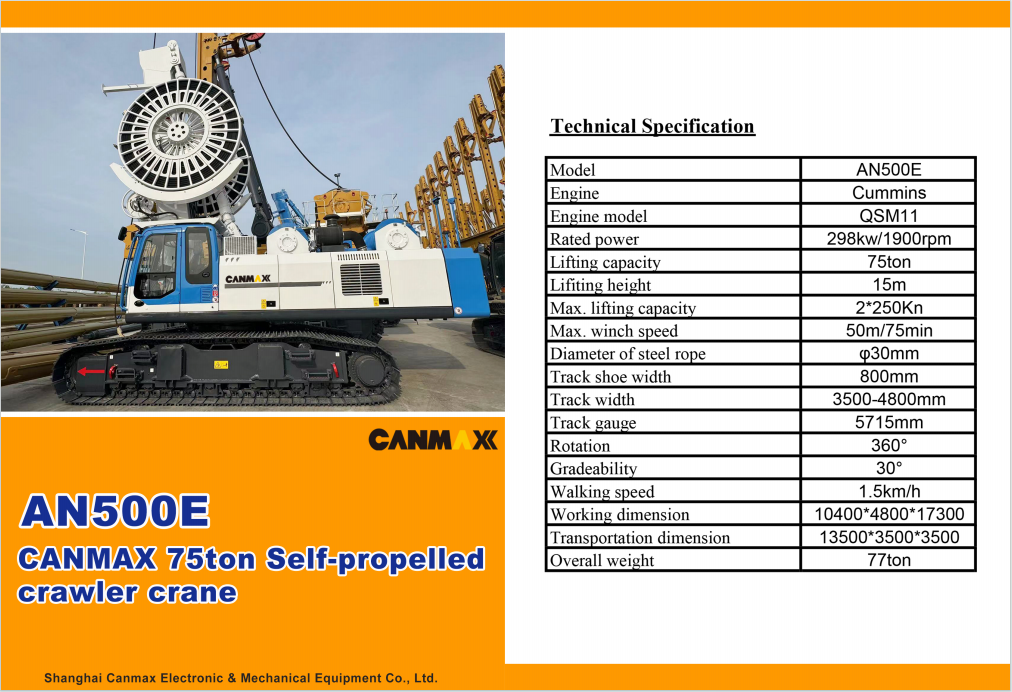

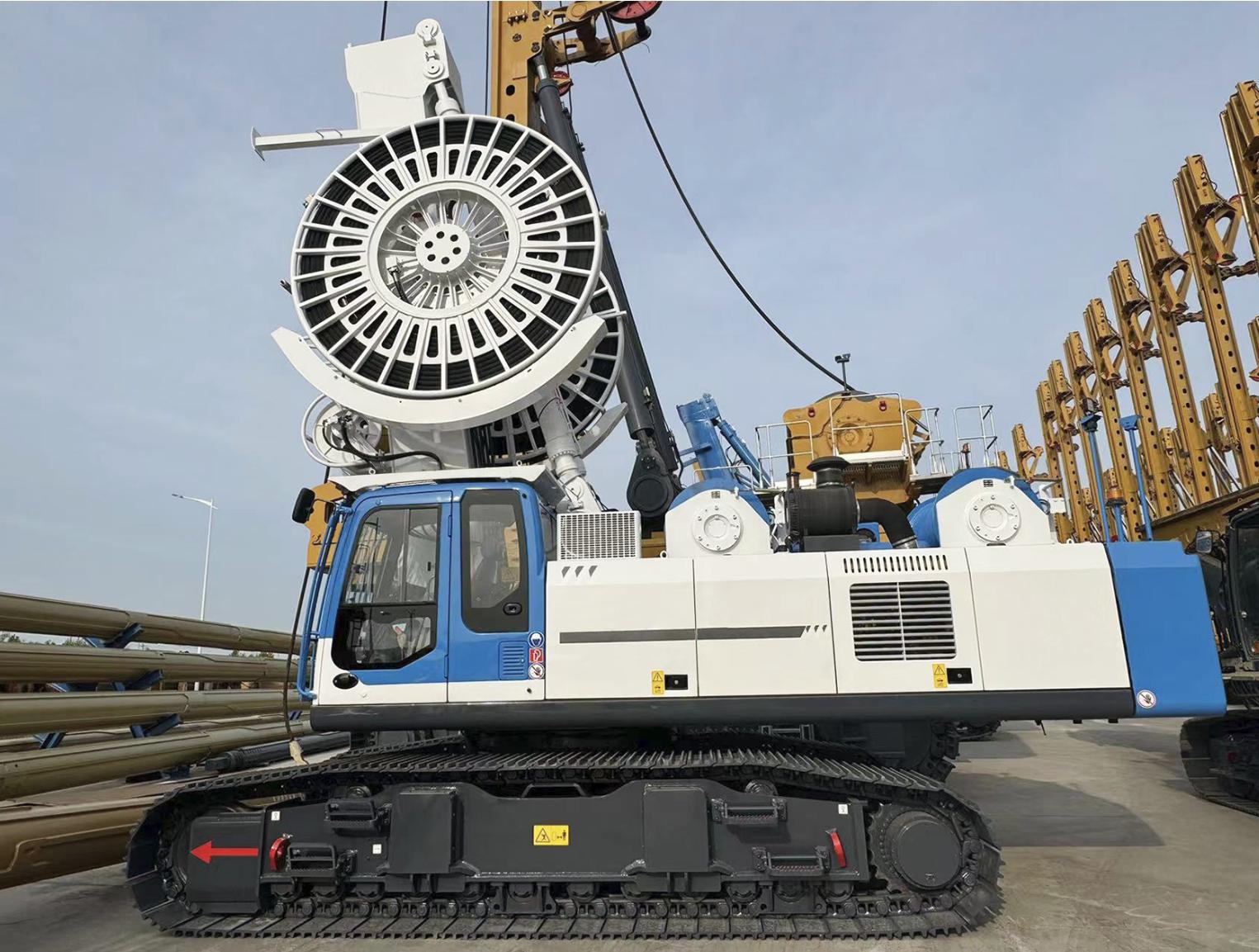

Crawler crane
CANMAX AN500E
|
Model | AN500E |
Engine | Cummins |
Engine model | QSM11 |
Rated power | 298kw/1900rpm |
Lifting capacity | 75ton |
Lifiting height | 15m |
Max.lifting capacity | 2*250Kn |
Max. winch speed | 50m/75min |
Diameter of steel rope | φ30mm |
Track shoe width | 800mm |
Track width | 3500-4800mm |
Track gauge | 5715mm |
Rotation | 360° |
Gradeability | 30° |
Walking speed | 1.5km/h |
Working dimension | 10400*4800*17300 |
lransportation dimension | 13500*3500*3500 |
Overall weight | 77ton |
*This product allows OEM (customizable customer logo) |
