Crawler crane
Crawler crane

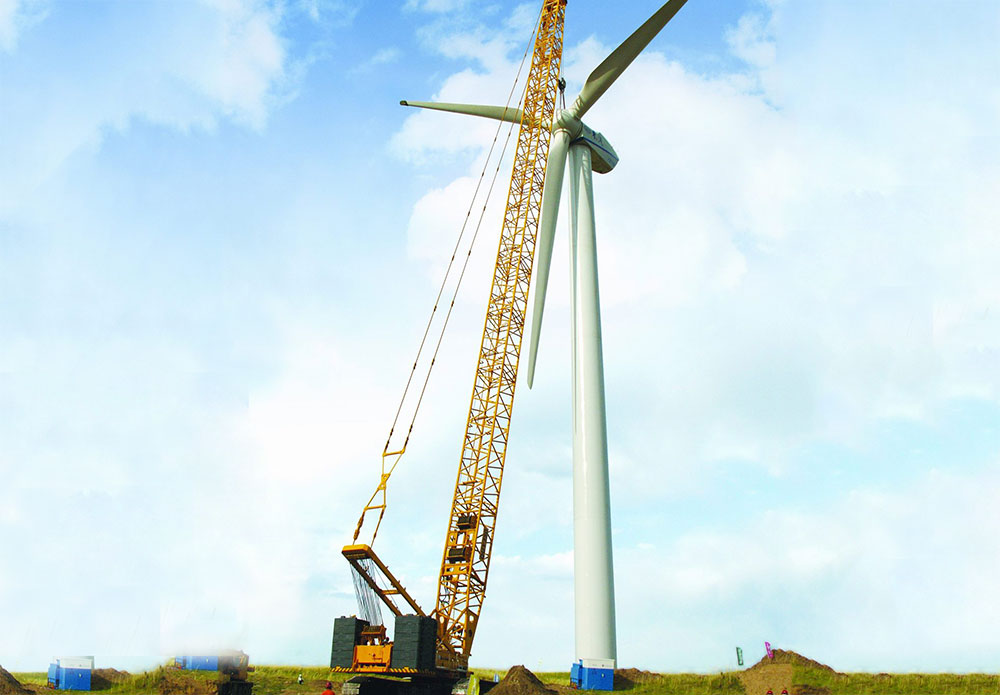

QUY35
- FEATURES
- PARAMETERS
Item | Unit | Data | |
|---|---|---|---|
| Max. lifting capacity | t | 350 | |
Standard working condition | Heavy boom length | m | 24-84/350 |
Light boom length | m | 42-102/190 | |
Fixed Jib length | m | 12-36/80 | |
Tower attachment length | m | 24-72/165 | |
Standard superlift working condition | Heavy boom length | m | 36-84/350 |
Light boom length | m | 78-120/190 | |
| Fixed Jib length | m | 12-36/80 | |
Tower attachment length | m | 24-72/190 | |
Max. single line hoisting speed( with no load,at 6th layer) | m/min | 130 | |
Max. single line speed for boom elevating system(with no load,at 6th layer) | m/min | 44×2 | |
Max. single line speed for tower attachment elevating system(with no load,at 6th layer) | m/min | 110 | |
| Max. single line speed for sideways superlift elevating system (with no load,at 6th layer ) | m/min | 110 | |
Swing speed | r/min | 1.0 | |
Propel speed | km/h | 0.95 | |
Mean ground pressure | MPa | 0.13 | |
Engine output | kW | 310 | |
Total mass (with 350t hook block,24m heavy boom) | t | 325 | |
Max. weight of single part(main machine) in transport state | t | 55 | |
Dimension of single part(main machine) in transport state(L×W×H) | m | 10.36×3.4×3.0 | |
