Crawler crane

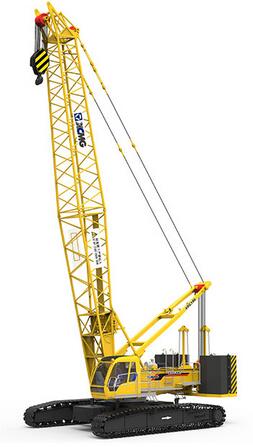

XGC180(CE)

REQUEST A QUOTE

You have choose: Crawler crane - XGC180(CE)

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
XGC180(CE)

1.High lifting performance, wide application range

1)Boom max. lifting capacity/radius 180t/5m, boom max. load moment 1000.8tm.

2)Boom max. length+luffing jib max. length 58m+59m, luffing jib max. lifting capacity 50t.

3)Fixed jib max. lifting capacity 33.5t.

1.2.Easy transport

1)Basic machine max. transport weight only 39t, max. transport width only 3m.

2)Transport without removing mast and winch, luffing jib base and front and rear strut transported as one part.

2.3.Complete self assembly/disassembly system (Optional Function)

1)Use mast for assembly/disassembly of left/right track frame, car-body counterweight, superstructure counterweight, and boom assembly and hoisting.

2)Counterweight raising mechanism to achieve assembly/disassembly of superstructure counterweight, work easily and quickly.

1)2)3)Car-body and track frame, boom and turntable, turntable and counterweight, all pin shafts use hydraulic power connection, easy for assembly and disassembly.

3.4.New work/installation mode switch-over and mast one-key-raising added, use remote control of assembly/disassembly, greatly improved security and convenience for basic machine assembly/disassembly.

5.Crane travel uses pedal valve control, with automatic direction change, make easier travel operation.

6.Boom main chord uses variable wall thickness design, enhanced lifting capacity while reduced dead weight.

7.Four sets of supporting roller added in central crawler frame, reduced the wear to track shoes, and make more stable travel.

8.Improved bracket design on driver’s cab, reduced the impact to the cab in transport.

9.Fine motion control of main pump flow added to make more stable operation.

10.Swing mechanism consists of two sets of slewing reducer with eccentric rotary gear and motor drive, increased swing smoothness.

11.Boom head single top uses new structure, larger spacing between main and auxiliary hook, easy for loading, and while easy for self assembly.

12.Control system is electronic proportional pump control variable system, simple, reliable, with good fine motion performance.

13.Hoist system uses electronic control + pressure cut-off type variable motor, to avoid the second decline and improve operational safety.


ItemUnitData
Max. rated lifting capacityBase boomt180
Fixed jibt33.5
Luffing jibt50
Max. load momentt.m1043.8
Boom lengthm19~82
Boo luffing angleBoom working condition°30~83
Tower jib working condition°30~85
Fixed jib working condition°30~85
Fixed jib lengthm13~31
Tower jib lengthm20~59
Hoist winch max. single line speed (no load, at 5th layer)m/min120
Boom luffing winch max. single line speed (no load, at 3rd layer)m/min2×34
Jib luffing winch max. single line speed (no load, at 2nd layer)m/min41.6
Max. slewing speedr/min1.5 (high-speed gear)
r/min0.7 (Low-speed gear)
Max. travel speedkm/h1.3 (high-speed gear)
km/h0.4 (low-speed gear)
Grade-ability%30
Mean ground pressureMPa0.105
Engine output powerkW242
Total vehicle mass (main hook block, full counterweight, 19m boom)t175
Max. mass of single unit in transport statet37
Max. dimension of single unit (turntable) in transport state (L×W×H)m12.5×3.0×3.3


Working conditionBoom combinationMax. lifting height (m)Working radius (m)Max. lifting capacity (t)
Boom19~82 m805~70180
Fixed jibBoom 25~70m,989~7633.5
jib 13~31m
Tower jibBoom 25~58m,11410~7450
jib 20~59m
Single topBoom headIncreased 1.5m13.5
