Crawler crane
Crawler crane

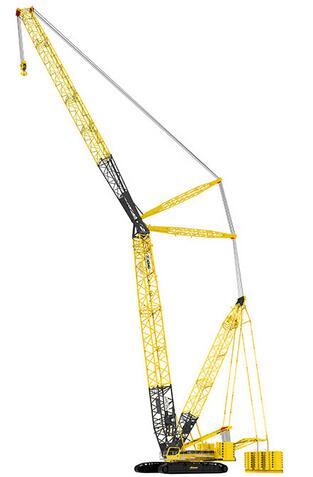

XGC500
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Items | ||||
|---|---|---|---|---|
| Max lifting capacity | Standard mode | Heavy boom | Unit | 450 |
| Light boom | T | 230 | ||
| Tower jib | T | 226.4 | ||
| SL mode | Heavy boom | T | 500 | |
| Light boom | T | 230 | ||
| Tower jib | T | 230 | ||
| Boom length | M | 24-96 | ||
| Boom luffing angle | 。 | -88 | ||
| Tower jib length | M | 24-84 | ||
| Winch max single line speed(no load, at 6thlayer) | m/min | 130 | ||
| Boom luffing gear max. single line speed(no load, at 1st layer) | m/min | 2×53 | ||
| Wire rope diam | Mm | 28 | ||
| Max rope single line pull | T | 17.2 | ||
| Slewing speed | r/min | 1 | ||
| Travel speed | Km/h | 0.73 | ||
| Grade ability | 30% | |||
| Mean ground pressure | Mpa | 0.18 | ||
| Engine output power | Kw | 360 | ||
| Total vehicle weight(24m heavy boom, 500t capacity hook block) | T | 375 | ||
| Max. weight of single unit in travel configuration | t | 50 | ||
| Max. dimension of single unit(tumtable) in travel configuration(L×W×H) | m | 11.5×3.4×3.4 | ||
