Crawler crane
Crawler crane

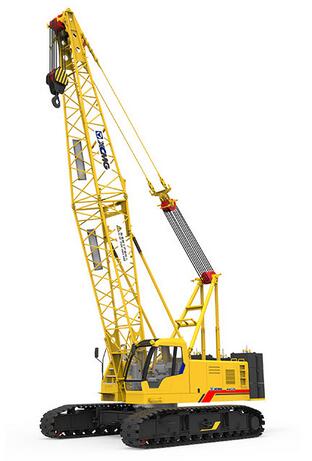

XGC75(CE)
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Project | Unit | Parameter |
| Max. lifting capacity | t | 75 |
| Fixed jib max. rated lifting capacity | t | 12 |
| Luffing jib max. rated lifting capacity | t | - |
| Max. lifting moment | t/m | 286 |
| Tower jib max. lifting weight | t | - |
| Working condition of single arm end pulley maximum rated lifting weight | t | 6.5 |
| Special deputy arm maximum rated lifting weight | t | - |
| Boom length | m | 13～58 |
| Boom luffing Angle | ° | (-3～80) |
| Fixed Jib length | m | 7～19 |
| Tower jib length | m | - |
| Cargo status sheet maximum size (length x width x height) | m | 12.7×3.4×3.4 |
| Fixed jib installation Angle | ° | 10°、30° |
| Max. single line hoisting speed | m/min | 128 |
| Max. single line speed for boom | m/min | 70 |
| Max. single line speed for jib luffing mechanism | m/min | - |
| Max. turning speed | r/min | 3 |
| Max.Travelling Speed | km/h | 1.4 |
| Gradeability | % | 30 |
| Average ground pressure | MPa | 0.08 |
| Engine model | SC7H210/QSB6.7 | |
| Engine power | KW | 154/153 |
| Emission | euro2/euro3 | |
| Total weight | kg | 61 |
| Cargo status sheet max. quality | kg | 37 |
