Crawler dynamic compactor
Crawler dynamic compactor

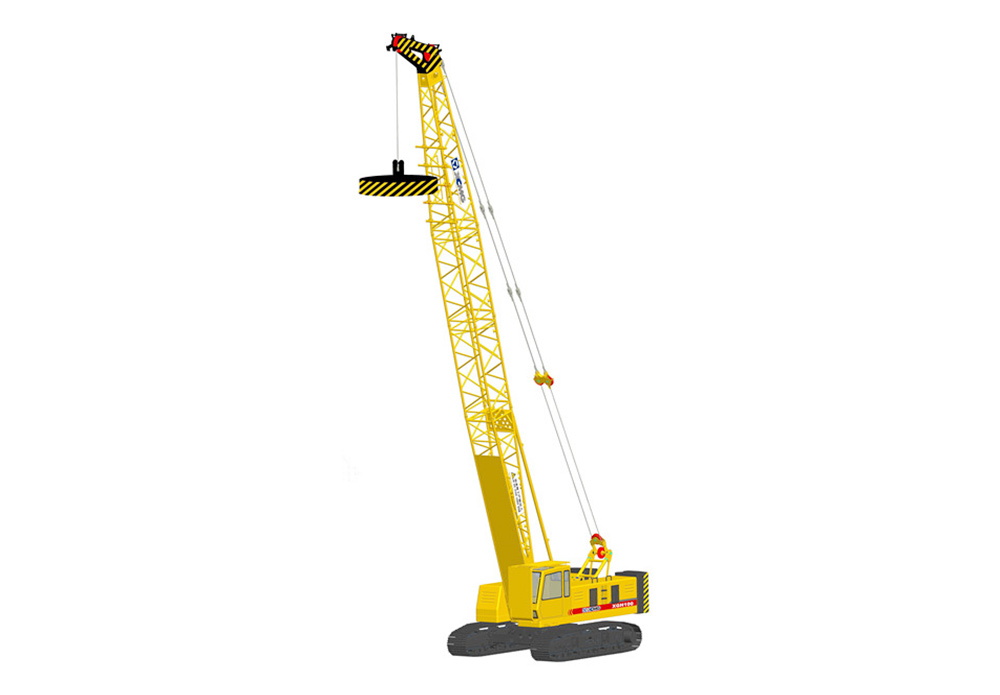

XGH100-lifting
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Project | Unit | Parameter |
| Tamping energy level | t.m | 105 |
| Max. allowed rammer weight | t | 7 |
| Max. droping distance | m | 15 |
| Max. height from pulley center to ground | m | 19 |
| The length of the boom | m | 18.5 |
| working angles | ° | 73 |
| Operating Radius | m | 7 |
| grounded length | mm | 4000 |
| Wheelbase | mm | 3200 |
| Track link width | mm | 700 |
| Size of Host Machine | m | 11×2.95×3.4 |
| Hoisting rope diameter | mm | 26 |
| Single rope tension | t | 8 |
| Full load lifting speed | m/min | 30 |
| Range of rope diameter | mm | 18 |
| radius changing speed | m/min | 50 |
| turning speed | r/min | 2 |
| traveling speed | km/h | 1.35 |
| gradeability | % | 30 |
| Ground pressure | MPa | 0.053 |
| Engine | Cummins | |
| Model | 4BTAA3.9-C115 | |
| engine power | kW | 85 |
| Emission | euro2 | |
| The basic arm weight | t | 32（12.5m main Boom） |
| counter weight | t | 10 |
| The host weight | t | 26(with main arm section and 6 t counterweight) |
