Crawler dynamic compactor

Crawler dynamic compactor

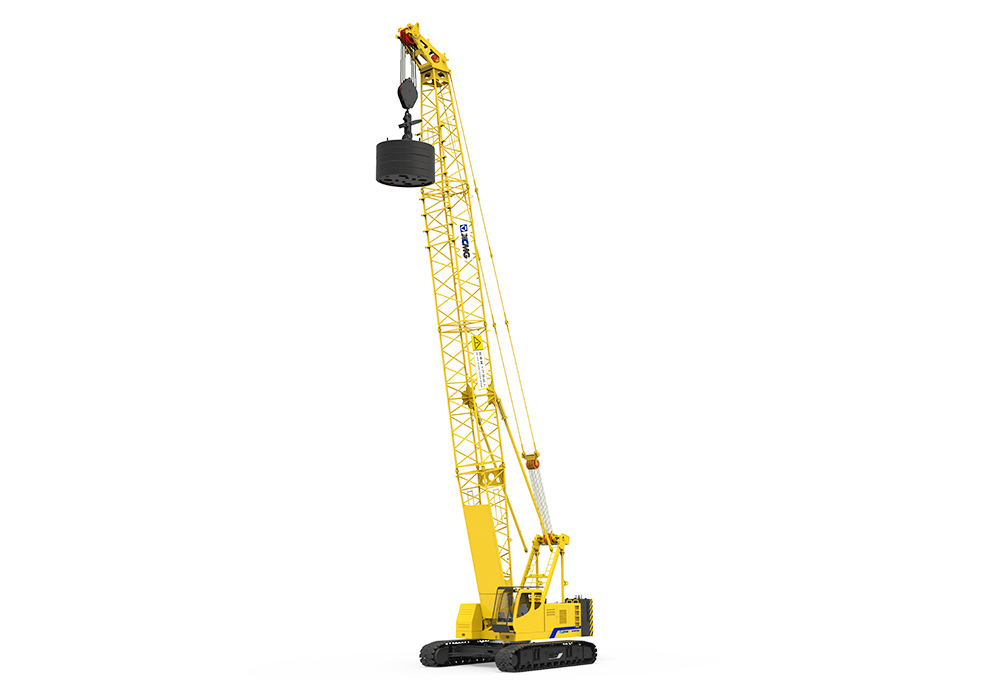

XGH350

REQUEST A QUOTE

You have choose: Crawler dynamic compactor - XGH350

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
XGH350
ProjectUnitParameter
Tamping energy levelt.m350/800
Max. allowed rammer weightt17.5/40
Max. droping distancem20/20
Max. height from pulley center to ground m26/26
The length of the boomm1925/1928
 working angles°6178/5763
Operating Radiusm711/1214.8
grounded lengthmm5200
Wheelbasemm4000
Track link widthmm760
Size of Host   Machinem8.0×3.36×3.3
Hoisting rope   diametermm28
Single rope   tensiont8
Full load   lifting speedm/min0112
Range of rope   diametermm20
radius   changing speedm/min57
turning speedr/min2
traveling   speedkm/h1.2
gradeability%40
 Ground pressureMPa0.068
EngineSHANGHAI
ModelSC9D260G3
engine powerkW192
Emissioneuro3
The basic arm   weightt55.525m main Boom
counter weightt16
The host   weightt33
