Crawler dynamic compactor

Crawler dynamic compactor

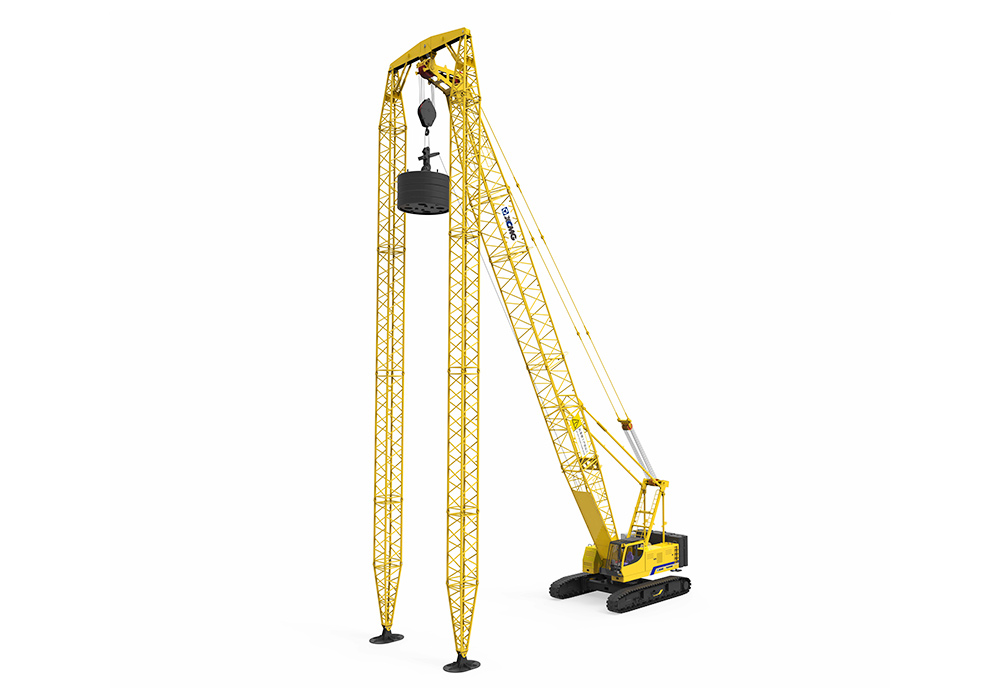

XGH460

REQUEST A QUOTE

You have choose: Crawler dynamic compactor - XGH460

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
XGH460
ProjectUnitParameter
Tamping energy levelt.m460/1200
Max. allowed rammer weightt23/60
Max. droping distancem20/20
Max. height from pulley center to ground m26/26
The length of the boomm1925/1928
 working angles°6178/6771
Operating Radiusm711/911
grounded lengthmm6025
Wheelbasemm4200
Track link widthmm760
Size of Host   Machinem9.15×3.42×3.45
Hoisting rope   diametermm28
Single rope   tensiont10
Full load   lifting speedm/min(30/12)
Range of rope   diametermm20
radius   changing speedm/min57
turning speedr/min2
traveling   speedkm/h1.2
gradeability%40
 Ground pressureMPa0.071
EngineDongfeng Cummins
ModelQSL8.9-C325
engine powerkW235
Emissioneuro3
The basic arm   weightt66.525m main Boom
counter weightt22
The host   weightt37.7
