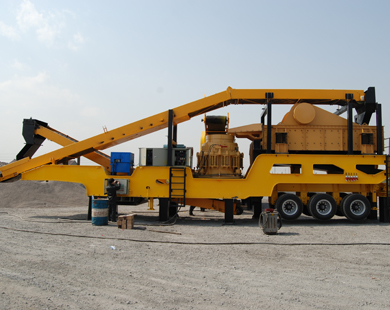

Mobile cone crushing plant(tyre) 50-450t/h

Mobile cone crusher made of high property vibrating feeder, high efficient cone crusher, conveyor belt, control cabinet, All machines is install with integration which fully show its flexible, co nvenient, coordinating advantage. It can be made especially according to customer requirement and do the suitable cone crusher, vibrating screen, electric cabinet, motor and related equipment; it has the big crushing capacity, high efficiency, medium and fine crushing cone crusher with big po wer which has the advantage of flexibility.

Material is transported to cone crusher via conveyor belt, then drop-in the conveyor belt after crushing, then transported vibrating feeder via hoper, qualified materials screened by vibratory screen is sent out by divided hopper or sent out from the stacker by belt conveyor upper the vibrating screen; unqualified material by screening is sent back to the cone crusher for continuous crash

型号 Model

DLDⅡ2-4015-3

DLDⅡ2-4518-3

DLDⅡ2-5118-3

DLDⅡ2-5421-3

DLDⅢ2-1212

DLDⅢ2-1313

破碎机型号 Crusher Model

DMC1000 DMH1536T

DMC1160 DMH1848T

DMC1300 DMH1848T

DMC1380 DMH2160T

2-PF1214

2-PF1315

车载主皮带机 Trailer main belt

B650

B800

B800

B1000

B1200

B1200

车载回料皮带机 Trailer return material belt

B650

B800

B800

B1000



车载成品料皮带机 Trailer finished material belt

2×B400

2×B500

2×B500

2×B650



运输长度 Transportation length(mm)

16420

17740

17940

18500

16610

16610

运输宽度Transportation width(mm)

2920

3150

 3450

3960

2670

2960

运输高度Transportation height(mm)

4330

4780

4950

4950

4500

4350

工作长度Working Length(mm)

16510

17830

18030

18590

16610

16610

工作宽度Working width(mm)

3950

4180

4480

4990

2670

2960

工作高度Working height(mm)

4970

5420

5590

 6390

4720

4580

功率Power(kw)

 159.64

204.94

234.94

302.94

271.5

409.7

 车桥配置Trailer Axle

3桥(3axle)

3桥(3axle)

3桥(3axle)

 4桥(4axle)

3桥

3桥

重量Weight(T)

45

 56

63

78

58

63
