Crusher

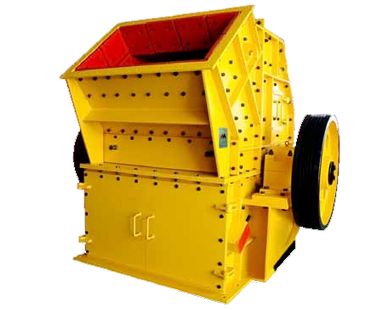

Stationary Ultra fine energy-saving crusher 15-310t/h
- FEATURES
- PARAMETERS
PC-D Ultra fine energy-saving crusher is a new impact type crushing equipment which combines of counterattack and hammer type together. The basic structure is composed of upper machine frame, lower machine frame and rotor. Widely used in chemical industry, building materials, metallurgy, mining, coal dressing, sand making, refractory and other industries, also used in the efficient crushing for limestone, cement clinker, shale, dolomite, granite, gypsum, mixed materials of the medium hardness.
Model | Size of feed opening（mm） | Capacity (t/h) | Average discharge size (mm) | Motor power (kw) | Dimension (mm) | |
Clinker | Limestone | |||||
PC-D-8040 | ＜80 | 15~20 | 20~25 | 3 | 37 | 1395 ×1506 ×1390 |
PC-D-8080 | ＜80 | 25~30 | 30~40 | 3 | 45 | 1395 ×1906 ×1390 |
PC-D-9080 | ＜100 | 40~45 | 45~50 | 3 | 45 | 1754 ×1906 ×1659 |
PC-D-9010 | ＜100 | 45~50 | 50~55 | 3 | 55 | 1745 ×2176 ×1659 |
PC-D-1010 | ＜150 | 50~60 | 60~70 | 3~5 | 90 | 2138 ×2590 ×2021 |
PC-D-1210 | ＜200 | 60~80 | 70~90 | 3~5 | 110 | 2524 ×2716 ×2325 |
PC-D-1212 | ＜200 | 60~100 | 70~110 | 3~5 | 132 | 2524 ×2866 ×2325 |
PC-D-1414 | ＜200 | 70~150 | 70~160 | 5~8 | 200 | 2550 ×3120 ×2670 |
PC-D-1616 | ＜200 | 100~210 | 110~260 | 5~8 | 250 | 2922 ×3564 ×2900 |
PC-D-1818 | ＜200 | 120~270 | 130~310 | 5~10 | 315 | 3121 ×3754 ×3150 |
