Deep well drilling rig
Deep well drilling rig

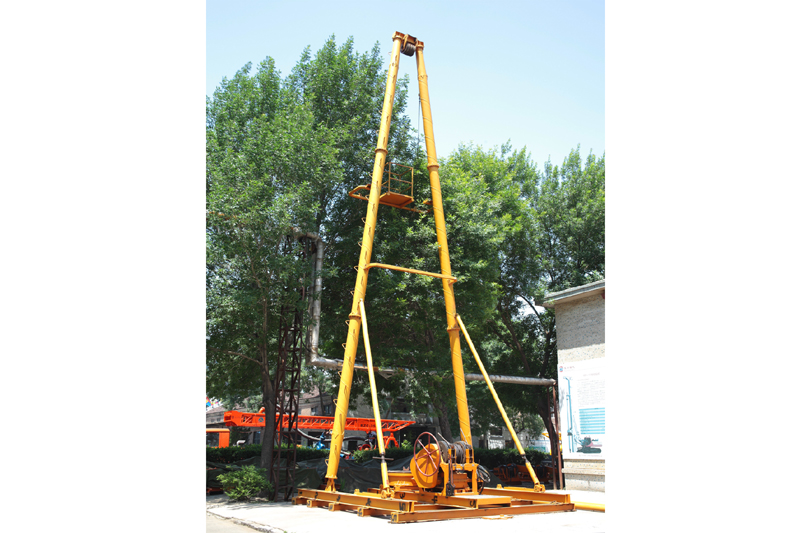

YT600A
REQUEST A QUOTE
- FEATURES
- PARAMETERS
YT-600 type drilling rig adopts single hoist set, large lifting capacity, large module, hyperboloid turntable, ensuring the balance of the rig in operating, large torque and using long time, it can used in soil and rock stratum. This type of driller is used in construction of high-rise building, highway and road, mining, ports, dams and deep well drilling.
Technical parameters | ||
| Drilling depth (m) | 600 | 80 |
| Drilling diameter (mm) | 500 | 2000 |
| Inner diameter of turntable （mm） | 500 | |
| Turntable rotation speed (forward and reverse) (r/min) | 37, 57, 85 | |
| Rated output torque of turntable (KN.m) | 20 | |
| Hoist lifting capacity (single rope) (KN) | 40 | |
| Bearing capacity of hydrant (KN) | 240 | |
| Matching power of main machine (KW) | 45 | |
| Working condition | Use A13 or A15 or A18 type frame | |
| The weight of whole machine (kg) | 3380 | |
