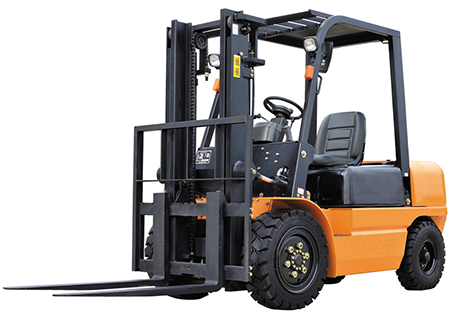

Diesel forklift

CPCD35

REQUEST A QUOTE

You have choose: Diesel forklift - CPCD35

*Region

*Country

*Your Name

*Email

*Mobile Number

*Verification Code See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

FEATURES
PARAMETERS

General
1	Manufacturer			CANMAX Forklift
2	Power Type			Diesel
3	Model No.			CPCD20	CPCD25	CPCD30	CPCD35
4	Rated Capacity		Kg	2000	2500	3000	3500
5	Load Center		mm	500	500	500	500
Dimensions
6	Lifting Height		mm	3000	3000	3000	3000
7	Free Lifting Height		mm	150	150	150	120
8	Fork Size		mm	1070x120x40	1070x120x40	1070x130x45	1070x130x45
9	Fork Spread (Outside) Max. /Min		mm	1100/240	1100/240	1100/250	1200/290
10	Mast Tilt Angle		deg	6/12	6/12	6/12	6/12
11	Front Overhang		mm	470	470	470	490
12	Overll Diemensions	Overall Length	mm	2530	2600	2730	3925
13		Overall Width	mm	1150	1150	1250	1250
14		Mast Closed Height	mm	1995	1995	2005	2130
15		Mast Extended Height	mm	4200	4200	4210	4250
16		Overhead Guard Height	mm	2130	2130	2180	2130
17	Min.Turning Radius		mm	2170	2240	2450	2650
18	Min.Right Angle Aisle Width		mm	2680	2750	2950	3210
Performance
19	No/Full Load	Travel Speed	km/h	20	20	20	20
20	No/Full Load	Lift Speed	mm/sec	450	450	400	400
21	Max.Gradeability		%	20	20	20	20
22	Selft Weight		kg	3340	3690	4200	4280
Chassis
23	Tires	Front	mm	7.00-12-12PR	7.00-12-12PR	28x9-15-12PR	28x9-15-12PR
24	Tires	Rear	mm	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
25	Tread	Front	mm	960	960	1030	1030
26	Tread	Rear	mm	980	980	980	980
27	Wheel Base			1600	1600	1700	1850
28	Min.Mast Ground Clearance			120	120	140	140
Drive Unit&Control
29	Battery		V/AH	12/60			12/60
30	Engine	Model		C490BPG	4D27G31	ISUZU C240	495 BPG	A498BT1-2	ISUZU 4JG
31		Manufacturer		CHINA	CHINA	JAPAN	CHINA	CHINA	JAPAN
32		Rated Power	KW/rpm	37/2650	36.8/2500	34.5/2500	42/2650	37/2200	44.9/2500
33		Rated Torque	N.m/rpm	148/1600	156/1700-1900	139.3/1800	180.2/2000-2200	193/1450-1650	186.3/1600-1800
34		No.of Cylinders		4	4	4	4	4	4
35		Bore x Stroke	mm	90 x 100	90 x 105	86x 102	95 x 105	98 x 105	95.4x 107
36		Displacement	cc	2540	2670	2369	2980	3168	3059
37		Fuel Tank Capacity	L	60	60	60	60	60	60
