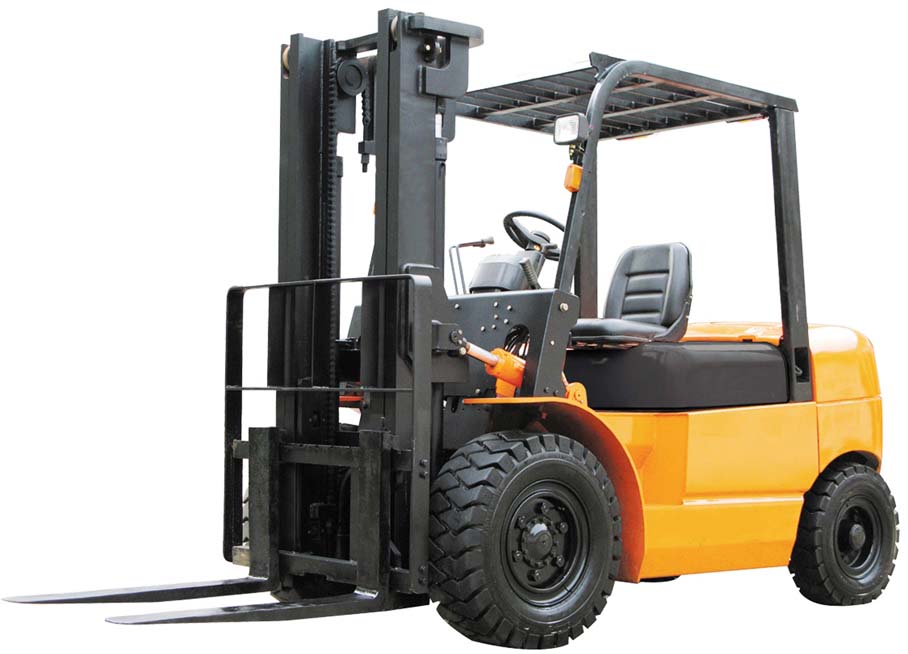

Diesel forklift
Diesel forklift
CPCD45
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| General | ||||||
| 1 | Manufacturer | CANMAX Forklift | ||||
| 2 | Power Type | Diesel | ||||
| 3 | Model No. | CPCD40 | CPCD45 | CPCD50 | ||
| 4 | Rated Capacity | Kg | 4000 | 4500 | 5000 | |
| 5 | Load Center | mm | 500 | 500 | 500 | |
| Dimensions | ||||||
| 6 | Lifting Height | mm | 3000 | 3000 | 3000 | |
| 7 | Free Lifting Height | mm | 150 | 150 | 150 | |
| 8 | Fork Size | mm | 1070x150x50 | 1070x150x55 | 1070x150x55 | |
| 9 | Fork Spread (Outside) Max. /Min | mm | 1200/300 | 1200/300 | 1200/300 | |
| 10 | Mast Tilt Angle | deg | 6/12 | 6/12 | 6/12 | |
| 11 | Front Overhang | mm | 565 | 565 | 565 | |
| 12 | Overll Diemensions | Overall Length | mm | 4190 | 4190 | 4195 |
| 13 | Overall Width | mm | 1485 | 1485 | 1485 | |
| 14 | Mast Closed Height | mm | 2350 | 2350 | 2350 | |
| 15 | Mast Extended Height | mm | 4100 | 4100 | 4100 | |
| 16 | Overhead Guard Height | mm | 2300 | 2300 | 2300 | |
| 17 | Min.Turning Radius | mm | 2850 | 2850 | 2890 | |
| 18 | Min.Right Angle Aisle Width | mm | 3415 | 3415 | 3460 | |
| Performance | ||||||
| 19 | No/Full Load | Travel Speed | km/h | 20 | 20 | 20 |
| 20 | Lift Speed | mm/sec | 450 | 450 | 430 | |
| 21 | Max.Gradeability | % | 20 | 20 | 20 | |
| 22 | Selft Weight | kg | 6450 | 6770 | 7050 | |
| Chassis | ||||||
| 23 | Tires | Front | mm | 300-15-14PR | 300-15-14PR | 300-15-14PR |
| 24 | Rear | mm | 700-12-12PR | 700-12-12PR | 700-12-12PR | |
| 25 | Tread | Front | mm | 1185 | 1185 | 1185 |
| 26 | Rear | mm | 1190 | 1190 | 1190 | |
| 27 | Wheel Base | 2000 | 2000 | 2000 | ||
| 28 | Min.Mast Ground Clearance | 145 | 145 | 145 | ||
| Drive Unit&Control | ||||||
| 29 | Battery | V/AH | 2x12/80 | 2x12/80 | ||
| 30 | Engine | Model | R4105G59A | S6S | ||
| 31 | Manufacturer | CHINA | JAPAN MITSUBISHI | |||
| 32 | Rated Power | KW/rpm | 59/2400 | 52/2300 | ||
| 33 | Rated Torque | N.m/rpm | 270/1600 | 248／1700 | ||
| 34 | No.of Cylinders | 4 | 6 | |||
| 35 | Bore x Stroke | mm | 105 x 120 | 94 x 120 | ||
| 36 | Displacement | cc | 4330 | 4996 | ||
| 37 | Fuel Tank Capacity | L | 90 | 90 | ||
