Diesel forklift
Diesel forklift

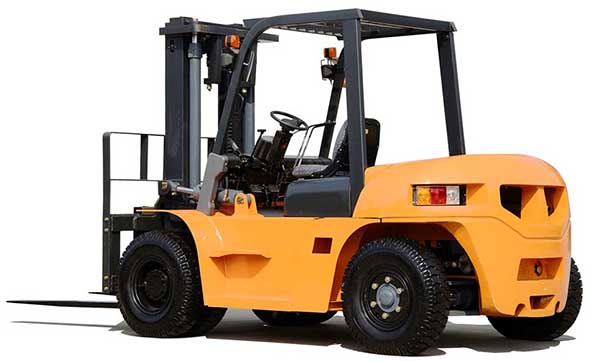

CPCD60
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| General | ||||||
| 1 | Manufacturer | CANMAX Forklift | ||||
| 2 | Power Type | Diesel | ||||
| 3 | Model No. | CPCD50 | CPCD60 | CPCD70 | ||
| 4 | Rated Capacity | Kg | 5000 | 6000 | 7000 | |
| 5 | Load Center | mm | 600 | 600 | 600 | |
| Dimensions | ||||||
| 6 | Lifting Height | mm | 3000 | 3000 | 3000 | |
| 7 | Free Lifting Height | mm | 160 | 160 | 160 | |
| 8 | Fork Size | mm | 1220x150x60 | 1220x150x60 | 1220x150x65 | |
| 9 | Fork Spread (Outside) Max. /Min | mm | 1845/300 | 1845/300 | 1845/300 | |
| 10 | Mast Tilt Angle | deg | 6/12 | 6/12 | 6/12 | |
| 11 | Front Overhang | mm | 635 | 635 | 635 | |
| 12 | Overll Diemensions | Overall Length | mm | 3472 | 3592 | 3592 |
| 13 | Overall Width | mm | 1995 | 1995 | 1995 | |
| 14 | Mast Closed Height | mm | 2519 | 2519 | 2519 | |
| 15 | Mast Extended Height | mm | 4419 | 4419 | 4419 | |
| 16 | Overhead Guard Height | mm | 2500 | 2500 | 2500 | |
| 17 | Min.Turning Radius | mm | 3300 | 3450 | 3450 | |
| 18 | Min.Right Angle Aisle Width | mm | 3000 | 3090 | 3090 | |
| Performance | ||||||
| 19 | No/Full Load | Travel Speed | km/h | 24 | 24 | 24 |
| 20 | Lift Speed | mm/sec | 390 | 360 | 360 | |
| 21 | Max.Gradeability | % | 20 | 20 | 20 | |
| 22 | Selft Weight | kg | 8240 | 9150 | 9530 | |
| Chassis | ||||||
| 23 | Tires | Front | mm | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR |
| 24 | Rear | mm | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | |
| 25 | Tread | Front | mm | 1470 | 1470 | 1470 |
| 26 | Rear | mm | 1700 | 1700 | 1700 | |
| 27 | Wheel Base | 2250 | 2250 | 2250 | ||
| 28 | Min.Mast Ground Clearance | 180 | 180 | 180 | ||
| Drive Unit&Control | ||||||
| 29 | Battery | V/AH | 2x12/80 | 2x12/80 | 2x12/80 | |
| 30 | Engine | Model | LR4105G59A | 6102BG6 | ISUZU A-6BG1QC | |
| 31 | Manufacturer | CHINA | CHINA | JAPAN | ||
| 32 | Rated Power | KW/rpm | 59/2400 | 80.9/2500 | 82.3/2000 | |
| 33 | Maximum Torque | N.m/rpm | 270/1600 | 353/1600 | 416/1400-1600 | |
| 34 | No.of Cylinders | 4 | 6 | 6 | ||
| 35 | Displacement | cc | 4.33 | 5.785 | 6.494 | |
| 36 | Fuel Tank Capacity | L | 120 | 140 | 140 | |
