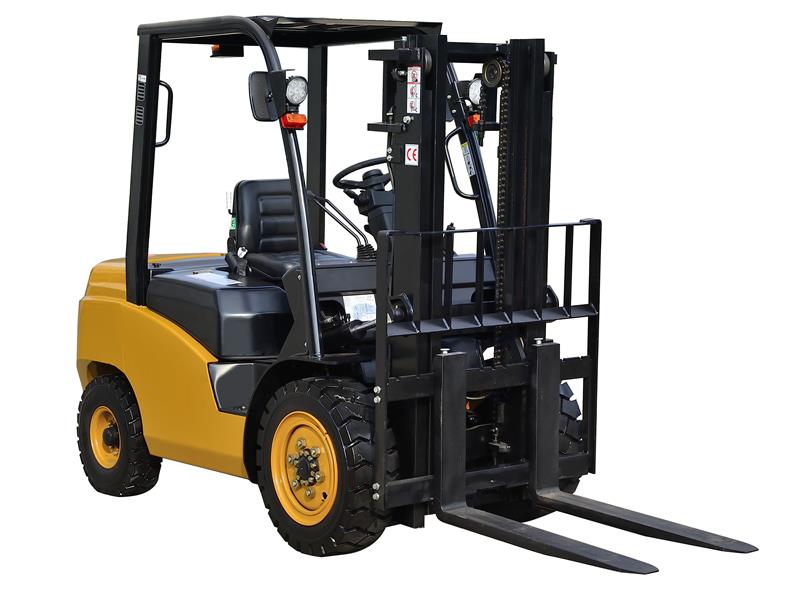

Diesel forklift
Diesel forklift
CPCQ20
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Model | CPC(Q)D20T8 | ||
| Power | Desiel engine | ||
| Rated load | kg | 2000 | |
| Load Center | mm | 500 | |
| Lifting height | mm | 3000 | |
| Free lifting height | mm | 120 | |
| Fork dimensions | mm | 1070×120×40 | |
| Gate inclination angle | ° | 6/12 | |
| The total length | mm | 2610 | |
| Overall width | mm | 1150 | |
| Mast lowered height | mm | 1995 | |
| Mast lift height | mm | 4200 | |
| Overhead guard height | mm | 2130 | |
| Minimum turning radius | mm | 2170 | |
| Min right angle aisle width | mm | 2680 | |
| Speed | Km/h | 20 | |
| Lifting speed | mm/sec | 450 | |
| Maximum gradability | % | 20 | |
| Tyre | The front wheel | 7,.00-12-12PR | |
| Rear wheel | 6.00-9-10PR | ||
| Wheelbase | mm | 1600 | |
| Minimum ground clearance | mm | 145 | |
| Engine | Model | Mitsubishi S4S-DPC | |
| Origin | Japan | ||
| Rated power | Kw/rpm | 34.4/2250 | |
| Maximum torque | N.m/rpm | 165/1700 | |
