Diesel forklift
Diesel forklift

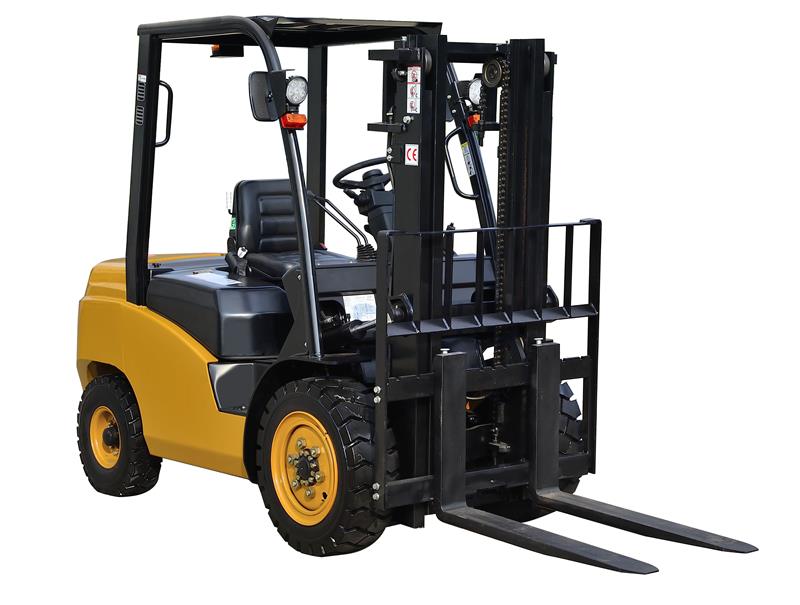

CPCQ35
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Model | CPC(Q)D35T8 | ||
| Power | |||
| Rated load | kg | 3500 | |
| Load Center | mm | 500 | |
| Lifting height | mm | 3000 | |
| Free lifting height | mm | 120 | |
| Fork dimensions | mm | 1070×125×50 | |
| Gate inclination angle | ° | 6/12 | |
| The total length | mm | 2822 | |
| Overall width | mm | 1200 | |
| Mast lowered height | mm | 2005 | |
| Mast lift height | mm | 4210 | |
| Overhead guard height | mm | 2180 | |
| Minimum turning radius | mm | 2510 | |
| Min right angle aisle width | mm | 3010 | |
| Speed | Km/h | 20 | |
| Lifting speed | mm/sec | 400 | |
| Maximum gradability | % | ||
| Tyre | The front wheel | 28×9-15-12PR | |
| Rear wheel | 6.50-10-10PR | ||
| Wheelbase | mm | 1760 | |
| Minimum ground clearance | mm | 175 | |
| Engine | Model | Mitsubishi S4S-DPC | |
| Origin | Japan | ||
| Rated power | Kw/rpm | 34.4/2250 | |
| Maximum torque | N.m/rpm | 165/1700 | |
