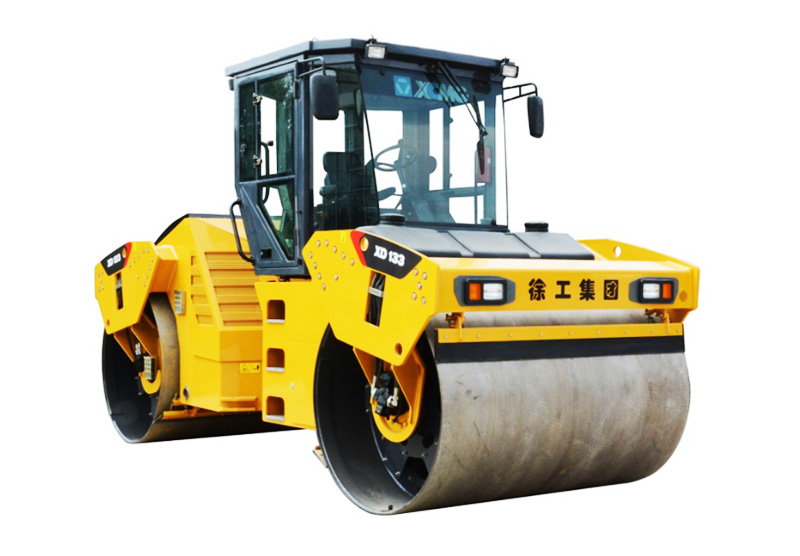

Double drums compactor

XD133

REQUEST A QUOTE

You have choose: Double drums compactor - XD133

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
XD133
ItemUnitParameters
The weight of distributionworking   weight(kg)13200
The front wheel distribution weight(kg)6600
The rear wheel distribution weight(kg)6600
compaction capacityStatic linear   load(N/cm)305/305
Nominal amplitude(mm)0.3/0.8
vibrational frequency(Hz)67/50
Vibration forceH/L(kN)110/170

Vibration wheel sizemm1300×2130
Motor powerSpeed   range(km/h)0~6,0~8,0~12
Theoretical gradeability(%)35
minimum turning radiusinside/outsidemm4470/6600

oscillating    angle(°)±8
steering angle(°)±35
enginemodel
DEUTZBF4M1013-15T3R/2
type
Inline   four-cylinder turbo water-cooling
 rated   power(kW)111
rated speed(r/min)2100
