Down hole drill
Down hole drill

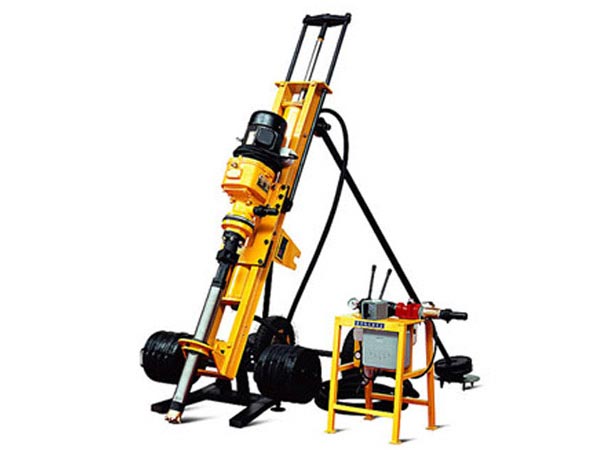

DH100QD
- FEATURES
- PARAMETERS
1. Drilling rig | |
Model | DH100QD |
Rock rigidity | f=6-20 |
Diam. of hole(mm) | 68-130 |
Optimum drilling depth(m) | 20 |
Rod length(mm) | 1000 |
Max. lifting power(N) | 7000 |
Working pressure(mpa) | 0.5-0.7 |
Air consumption (m3/min) | ≥7 |
Speed of rotator(r/min) | 0~90 |
Motor power(kw) | 4 |
Weight(kg) | 260 |
2.Compressors | |
Model: MHC330-8 | Diesel Engine |
Type: Double Rotary Screw, One stage compression | Model:YC4B115Z |
Cool way: Oil cooled | Type: water cool,4 stroke |
Air Delivery: 10m3/min | Working power:84kw |
Working pressure:5-8bar | Rated rotation speed:2400rpm |
Driven way: Coupling direct connected, diesel driven | Lube oil capacity:48L |
Lube oil:48L | Fuel tank capacity:120-160L |
Oil tank capacity:20-24L | Coolant capacity:20-40L |
Dimension(L*W*H):2880*1740*1760mm | 80% loading oil comsuption:13-14L/H |
Weight:1950kg | |
