Down hole drill

Down hole drill

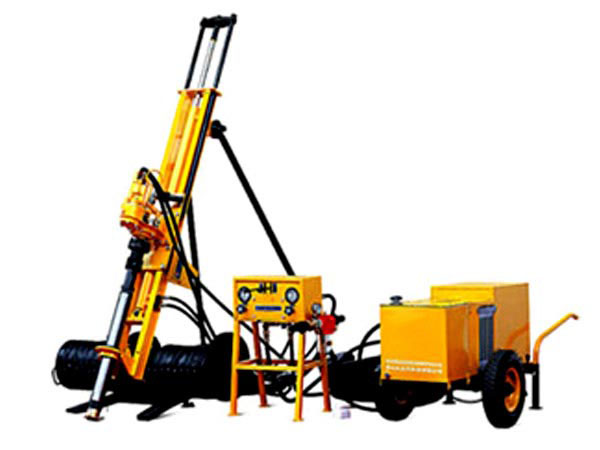

DH100QJ

REQUEST A QUOTE

You have choose: Down hole drill - DH100QJ

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
DH100QJ

1.Drilling   rig

Model

DH100QJ

HQD70

Rock rigidity

f=6-20

f=6-20

Diam. of hole(mm)

68-130

68-80

Optimum drilling depth(m)

20

15

Rod length(mm)

1000

1000

Max. lifting power(N)

15000

4200

Working pressure(mpa)

0.5-0.7

0.5-0.7

Air consumption (m3/min)

3.5-7.2

3.5-5

Speed of rotator(r/min)

70

0-90

Motor power(kw)

11

3

Weight(kg)

400

175

2.Compressors

Model: MHC330-8

Diesel Engine

Type: Double Rotary Screw, One stage compression

Model:YC4B115Z

Cool way: Oil cooled

Type: water cool,4   stroke

Air Delivery:   10m3/min

Working power:84kw

Working   pressure:5-8bar

Rated rotation speed:2400rpm

Driven way: Coupling   direct connected, diesel driven

Lube oil   capacity:48L

Lube oil:48L

Fuel tank   capacity:120-160L

Oil tank   capacity:20-24L

Coolant   capacity:20-40L

Dimension(L*W*H):2880*1740*1760mm

80% loading oil   comsuption:13-14L/H

Weight:1950kg
