Down hole drill
Down hole drill

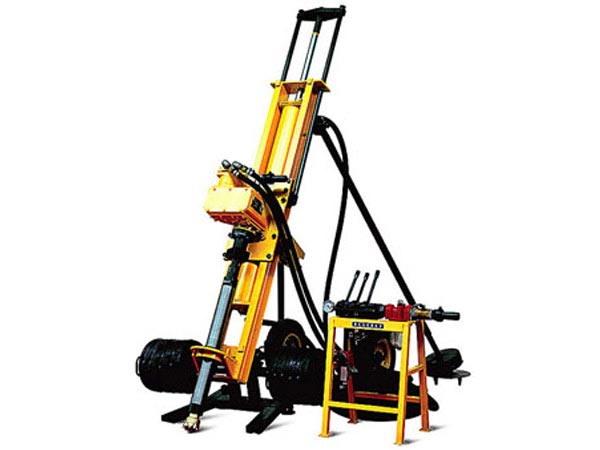

DH110QF
- FEATURES
- PARAMETERS
1.Drilling rig | |
Model | DH110QF (Full pneumatic type) |
Rock rigidity | f=6-20 |
Diam. of hole(mm) | 68-130 |
Optimum drilling depth(m) | 20 |
Rod length(mm) | 1000 |
Max. lifting power(N) | 7000 |
Working pressure(mpa) | 0.5-0.7 |
Air consumption (m3/min) | 9.0-12 |
Speed of rotator(r/min) | 110-160 |
Motor power(kw) | 4 |
Weight(kg) | 260 |
2.Compressors | |
Model: MHC450-8 | Diesel Engine |
Type: Double Rotary Screw, one stage | Model:6BT5.9 |
Cool way: Air Cooling | Type: water cool,4 stroke |
Air Delivery: 13m3/min | Working power:110kw/150hp |
Working pressure:8bar | Rated rotation speed:2400rpm |
Working pressure range:5-8bar | Collant capacity:25～28L |
Lube oil:60L | Engine oil capacity:12～18L |
Noise:80-85dB(A) | Oil tank capacity:120～160L |
Electricity:24V direct | 80% loading oil consumption:17-18L/h |
Inlet pipe size,qty.:R1.1/2"×1、R1"×1 | |
Wheel distance: 1560mm | |
Dimension(L*W*H):3220×1850×1850mm | |
Weight:2450kg | |
