Drill jumbos

DJW2-50

REQUEST A QUOTE

You have choose: Drill jumbos - DJW2-50

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS

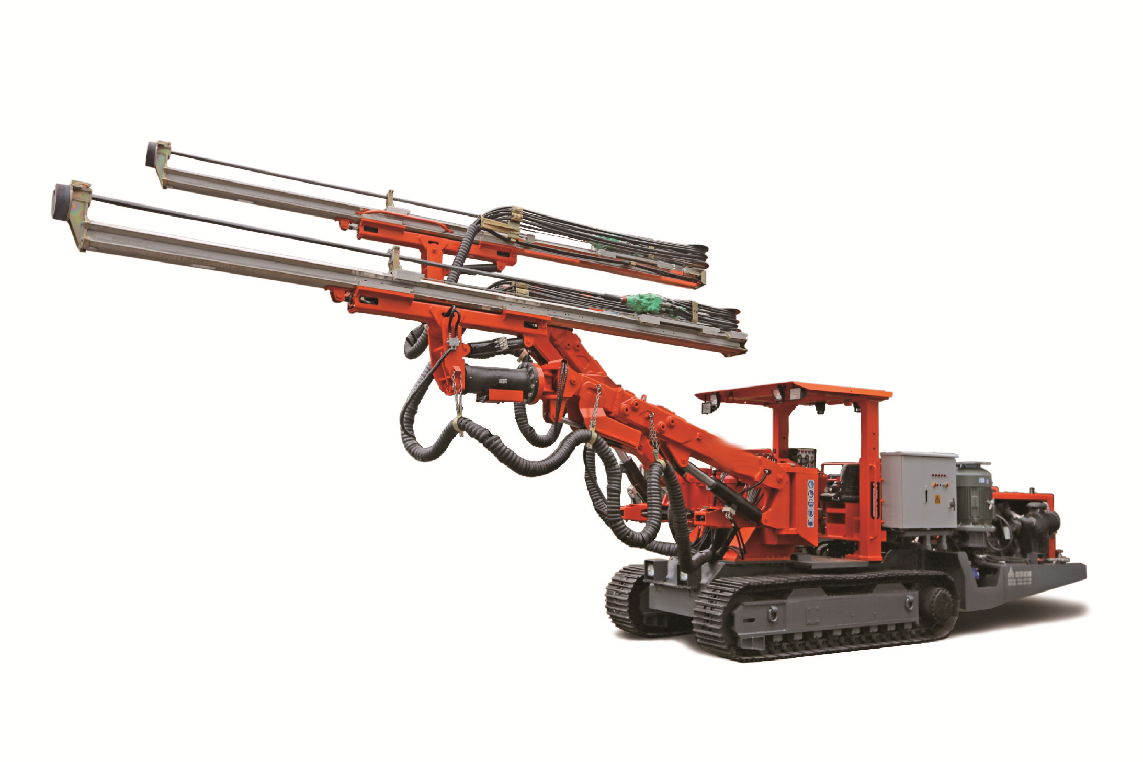

DJW2-50
DJW2-50
ProjectUnitParameter
Overall Dimension(mm)12500*2080*3045
Application Size(mm)8350*6350
Drilling Depth(mm)2795/3405/4015


Drilling Speed(m/min)0.8-2
Main Motor Power2*55KW
Hydraulic Oil Tank(L)300
Operating Weight(kg)20500
Travelling Speed(km/h)2.2-4.2
Gradebility(%)14



Drilling Arm ModelHC50/HC109
Arm Length(mm)3090/3700/4310



Steering40
Diesel Engine Power(kw)123


Water Flow speed (L/Min)66
Water Flow Pressure(Mpa)0.8-1.2
