Dump truck

HOWO 336hp 6x4 dump truck model ZZ3257N3847A

REQUEST A QUOTE

You have choose: Dump truck - HOWO 336hp 6x4 dump truck model ZZ3257N3847A

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS

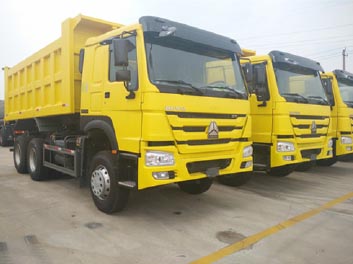

HOWO 336hp 6x4 dump truck model ZZ3257N3847A


General information

Driving Type:

6X4

Model No..

ZZ3257N3847A

Whole Dimension:

8545×2496×3370mm

Wheel base:

3825 1350mm

Loading weight:

30 ton

Max speed:

75km/h

Engine

Engine No:

WD615.69

Cylinder No

6

Fuel type:

Diesel

Emission:

9.726L

Emission standard:

Euro II

Horse power:

336hp

Max output rate:

273kw

Torque:

1500n.m

Max twist speed:

1100-1600r/min

Rated rotate speed

2200rpm

Gearbox

Gearbox No:

HW19710

Transmission Type:

Manual

Forward:

10 speed

Reverse:

2 speed

Dump truck Chassis and tire

Front axle:

HF9

Front axle loading:

9000kg

Rear axle:

HC16

Rear axle loading:

16000kg

Tires

12.00-20/12.00R20

Tire quantity:

11, with spare tire

Dump box

Box dimension:

5800x2300x1500mm

Hydraulic System:

HYVA front lift

Floor thickness

8mm /10mm/12mm

Side thickness:

4mm /6mm/8mm
