Dump truck

HOWO 371hp 8x4 dump truck model ZZ3317N3567 N1

REQUEST A QUOTE

You have choose: Dump truck - HOWO 371hp 8x4 dump truck model ZZ3317N3567 N1

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS

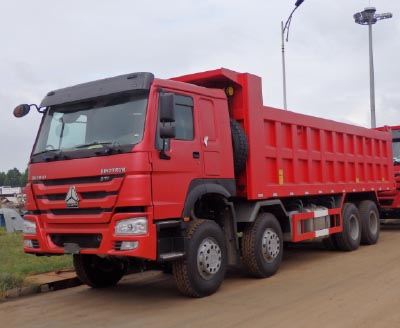

HOWO 371hp 8x4 dump truck model ZZ3317N3567 N1

General information

Driving Type:

8x4

Model Number:

ZZ3317N3567 W

Whole Dimension:

10150*2550*3500 mm

Wheel base:

1800 3500 1350mm

Loading weight:

40-50 ton

Max speed:

75km/h

Engine

Engine No:

WD615.47

Cylinder No

6

Fuel type:

Diesel

Emission:

9.726L

Emission standard:

Euro II

Horse power:

371hp

Max output rate:

273kw

Torque:

1500n.m

Max twist speed:

1100-1600r/min

Rated rotate speed

2200rpm

Gearbox

Gearbox No:

HW19710

Transmission Type:

Manual

Forward:

10 speed

Reverse:

2 speed

Chassis and tire

Front axle:

HF9 x2

Front axle loading:

9000kg x2

Rear axle:

HC16 x2

Rear axle loading:

16000kg x 2

Tires

12.00-20/12.00R20

Tire quantity:

13, with one spare tire

Dump box

Box dimension:

7300x2300x1500mm(25.18m3)

Hydraulic System:

Front lift

Floor thickness

8mm /10mm/12mm

Side thickness:

4mm /6mm/8mm

Note:  1. Dimension of dump box can be customized as customer’s request.

2. 266hp, 336hp, 371hp engine power is optional.
