SHACMAN 375hp 8x4 Dump Truck model SX3317DR456
- FEATURES
- PARAMETERS

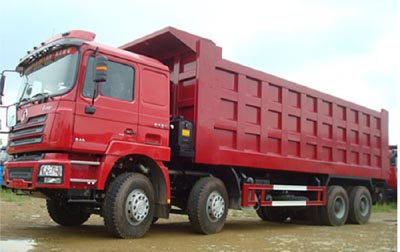

![SHACMAN 375hp 8x4 Dump Truck model SX3317DR456](/upLoad/product/month_1701/201701061538548231.jpg)
Model | Shacman F3000 /F2000 Dump Truck | |
Driving type | 8x4 (option 4x2, 6x4) | |
Weight | Complete kerb mass (kg) | 14500 |
GVW (kg) | 32500 | |
Dimensions | LxWxH (mm) | 11355x2490x3370 |
Body size(mm) | 8000,8300x2300x1100,1300,1500 | |
Front/rear overhang(chassis) | 1525/2055 | |
Wheel base (mm) | 1800 4575 1400 | |
Track width (mm) | 2036/1850 | |
Performance | Max. speed ( km/h) | 74 |
Min. turning circle (m) | 17 | |
Min. ground clearance (mm) | 314 | |
Approach/Departure angle(°) | 22/30 | |
Max. gradeability (%) | 33 | |
Transmission | FAST FULLER 9F/1R OR 10F/2R or 12F/2R transmission | |
Brakes | Type | Drum |
Service brake | With dual-circuit compressed air brake | |
Park brake | Power spring brake acting on rear wheel | |
Auxiliary brake | WEVB | |
Optional | ABS | |
Steering | ZF8098 Power assistant steering | |
Chassis | Type | Ladder structure with parallel straight |
300x8x(8 7) | ||
Suspension | Front suspension | Longitudinal leaf spring |
Rear suspension | Inverted leaf spring stabilizator suspension | |
Tyres | Type(standard) | 11.00-20 |
Optional | 12.00R20/11.00R20/12.00-20/12R22.5 | |
Fuel tank | Tank capacity (L) | 380 |
Material | Metal | |
Cab | Type | MAN F3000/ F2000, Middle Lengthened flat roof |
Equipemets | Hydraulic suspension cab, hydraulic chair with seatbelts,1 sleeping bed… | |
Engine | Brand | Weichai |
Model | WP12.375 | |
Power (kw/HP) | 276/375 | |
Max. torque (N.m)/rpm | 1500/1200-1600 | |
Displacement (L) | 11.596 | |
Emission standard | Euro II | |
Axles | Brand | HANDE (MAN) |
Front axle | 7500kg | |
Rear axle | 13000kg,Double reduction driving axle with inter-wheel differential and differential lock | |
Ratio | 5.73 |
