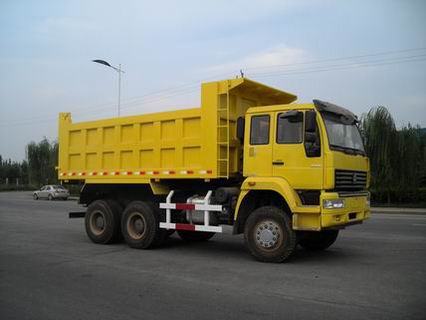

SINOTRUCK 290hp 6x4 dump truck model ZZ3251M3241C1
- FEATURES
- PARAMETERS
Truck Model | ZZ3251M3241C1 | ||
Dimension(L*W*H) (unloaded) (mm) | 7520*2490*3250 | ||
Cargo body size (L*W*H) (mm) | 5000*2300*1200, T middle lift, side 6mm bottom 8mm | ||
Approaching angle/Departure angle (º) | 20.5/27 | ||
Overhang(front/rear) (mm) | 1320/1650 | ||
Wheel base (mm) | 3200+1350 | ||
Max speed (km/h) | 75 | ||
Curb weight (kg) | 12170 | ||
Loading Weight(kg) | 12700 | ||
Engine (Steyr technology, made in China) | Model | WD615.92,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | |
Fuel type | Diesel | ||
HorsePower, max(kw/rpm) | 300HP | ||
Emission | EURO2 | ||
Transmission | Model | HW15710 | |
Brake system | Service brake | Dual circuit compressed air brake | |
Parking brake | spring energy, compressed air operating on rear wheels | ||
Steering system | Model | JL80Z | |
Front axle | HF 7 drums | ||
Rear axle | Pressed axle housing, central double reduction with differential locks between axles and wheels | ||
Tyre | 12.00R20 | ||
