Horizontal directional drill

Horizontal directional drill

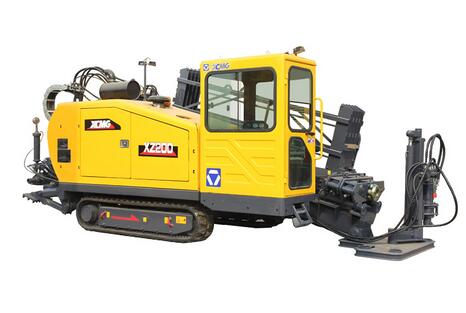

XZ200

REQUEST A QUOTE

You have choose: Horizontal directional drill - XZ200

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
XZ200

1.Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.

2.Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.

3.High-speed sliding systems, Piston Motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.

4.Stable chassis support, using the classical H type beam structure, quality rubber track, frog Outrigger, provides a strong guarantee for the stability of construction

5.Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices, can also be optioned more Eco Saving  Cummins with EU Stage ⅢA.


Project
Engine
Type
Rated power
Thrust-Pull
Max thrust-pull force
thrust-pull speed
Rotation
Torque
Max spindle speed
Mud pump
Max Flow rate
Max pressure
Pipe
Loader Crane
Lifting weight
Loading capacity
Max inclination angle
Max backreamer diameter
Weight
Dimension
Remark
Unit
-
(kW/r/min)
(kN)
(m/min)
(N·m)
(r/min)
(L/min)
(MPa)
(mm×m)
(t)
(t•m)
(°)
(mm)
(t)
(mm)
-
Parameter
Cummins 6BTAA5.9-C150
112/2200
225
26
6350
160
250
8
φ60×3
22
φ600
8.5
5900×2020×2400
Optional:
