Horizontal directional drill
Horizontal directional drill

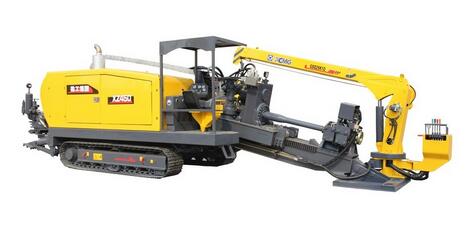

XZ450
REQUEST A QUOTE
- FEATURES
- PARAMETERS
1. Closed loops, hydraulic pilot control, load sensing control help to save energy and operate flexibly.
2. The gear and rack transmission makes stability and reliability, floating patented technology for carriage and vice is to improve service life of rods’ thread.
3. Optional reinforcing carriage to double the pull-back force to meet specific construction.
4. Dimension is small enough to be transported in container.
5. Wire guided walking system makes moving safe.
Project
Engine
Type
Rated power
Thrust-Pull
Max thrust-pull force
thrust-pull speed
Rotation
Torque
Max spindle speed
Mud pump
Max Flow rate
Max pressure
Pipe
Loader Crane
Lifting weight
Loading capacity
Max inclination angle
Max backreamer diameter
Weight
Dimension
Remark
Unit
-
(kW/r/min)
(kN)
(m/min)
(N·m)
(r/min)
(L/min)
(MPa)
(mm×m)
(t)
(t•m)
(°)
(mm)
(t)
(mm)
-
Parameter
Cummins 6CTA8.3-C260
194/2200
480
38
23500
135
450
8
φ89×4.5
2
4
20
φ900
13.3
8800×2280×2610
Optional：
