Hydraulic truck crane
Hydraulic truck crane

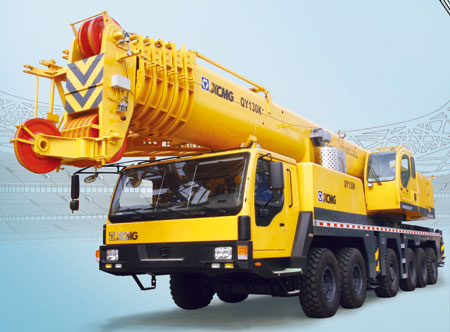

QY130K
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Classificatory | Item | Unit | Parameter | |
|---|---|---|---|---|
| Outline dimension | Overall length | mm | 14950 | |
| Overall width | mm | 3000 | ||
| Overall height | mm | 3950 | ||
| Axle base | Axle 1, Axle 2 | mm | 1420 | |
| Axle 2, Axle 3 | mm | 2420 | ||
| Axle 3, Axle 4 | mm | 1875 | ||
| Axle 4, Axle 5 | mm | 1350 | ||
| Axle 5, Axle 6 | mm | 1400 | ||
| Wheel base | mm | 2610/2307 | ||
| Mass | Total mass in travel state | kg | 62000 | |
| Axle load | Axle 1, Axle 2 | kg | 8800/8800 | |
| Axle 3, Axle 4 | kg | 9200/12700 | ||
| Axle 5, Axle 6 | kg | 12700/9800 | ||
| Power | Crane superstructure engine | Rated power | kw/(r/min) | 162/2100 |
| Rated torque | N.m/(r/min) | 854/1400 | ||
| Rated speed | r/min | 2100 | ||
| Crane carrier engine | Rated power | kw/(r/min) | 390/1800 | |
| Rated torque | N.m/(r/min) | 2400/1080 | ||
| Rated speed | r/min | 2000 | ||
| Travel performance | Travel speed | Max. travel speed | km/h | 70 |
| Min. stable travel speed | km/h | 2.1 | ||
| Min. turning diameter | m | 24 | ||
| Min. ground clearance | mm | 275 | ||
| Approach angle | (°) | 23 | ||
| Departure angle | (°) | 14 | ||
| Braking distance (at 30km/h) | m | ≤ 10 | ||
| Max. grade-ability | ％ | 40 | ||
| Fuel consumption for 100km | L | 80 | ||
