Hydraulic truck crane
Hydraulic truck crane

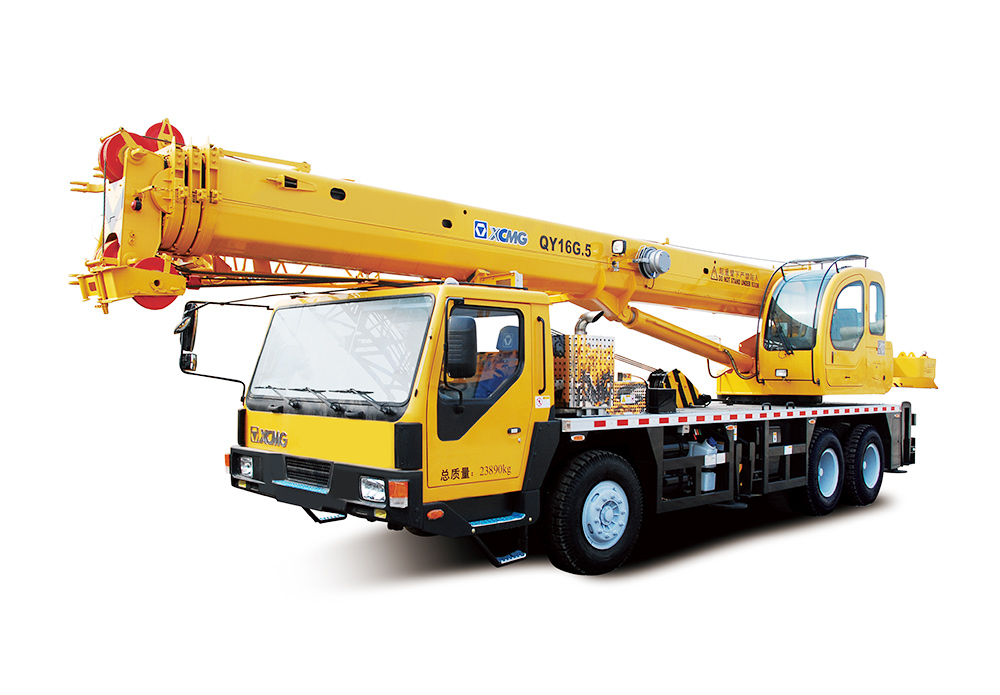

QY16G.5II
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Project | Unit | Parameter |
| Dimension | ||
| Overall Length | (mm) | 12210 |
| Overall Width | (mm) | 2500 |
| Overall Height | (mm) | 3250 |
| Wheel Base | (mm) | 4225+1350 |
| Wheel Tread | (mm) | Front wheel2074 Rear Wheel1834 |
| Weight | ||
| Travelling Weight | (kg) | 23900 |
| Axle Load | (kg) | 6960+16940 |
| Kinetic Parameter | ||
| Engine Model | SC8DK230Q3 | |
| Rated Power | (kw/(r/min)) | 170/2200 |
| Rated Torque | (N.m/(r/min)) | 830/1400 |
| Travelling Parameter | ||
| Travelling | ||
| Max.Travelling Speed | (km/h) | 70 |
| Min.Stable Travelling Speed | (km/h) | 3～4 |
| Turning | ||
| Min Diameter of Turning Circle | (m) | 20 |
| Min Diameter of Turning Circle of Boom Head | (m) | 23 |
| Max Gradeability | (％) | 33 |
| Minimum Ground Clearance | (mm) | 275 |
| Approach Angle | (°) | 16 |
| Departure Angle | (°) | 13 |
| Braking Length | (m) | 10 |
| Fuel Consumption Per Hundred Kilometers | (L) | 25 |
| Main Performance Parameters | ||
| Max.Rated Lifting Capacity | (t) | 16 |
| Min.Rated Range | (m) | 3 |
| Max. Lifting Moment of Basic Boom | (kN·m) | 420 |
| Turning Radius of Platform Tail | (mm) | 3240 |
| Outriggers | ||
| Lengthways | (m) | 4.6 |
| Transverse | (m) | 5.4 |
| Max. Lifting Height | ||
| Basic Boom | (m) | 9.9 |
| Full-extend boom | (m) | 31.1 |
| Full-extend boom + jib | (m) | 39.4 |
| Full-extend boom + jib+ extension section | - | - |
| Boom Length | ||
| Basic Boom | (m) | 31 |
| Full-extend boom | (m) | 31+8.15 |
| Full-extend boom + jib | - | - |
| Full-extend boom + jib+ extension section | (m) | - |
| Working Speed | ||
| Max Rotating Speed | (r/min) | - |
| Lifting Speed | ||
| Main Hoisting Mechanism | (s) | 78/125 |
| Auxiliary Hoisting Mechanism | - | |
| Boom Extend-retract Time | ||
| Full-extend | (s) | - |
| Full-retract | (s) | - |
| Luffing Time | ||
| Full Extension Time | (s) | - |
| Full Retract Time | (s) | - |
| Outrigger--horizontal | ||
| Open Simultaneously--horizontal | (s) | 26 |
| Close Simultaneously--horizontal | (s) | - |
| Outrigger--Vertical | ||
| Open Simultaneously | (s) | 30 |
| Close Simultaneously | (s) | - |
