Hydraulic truck crane

Hydraulic truck crane

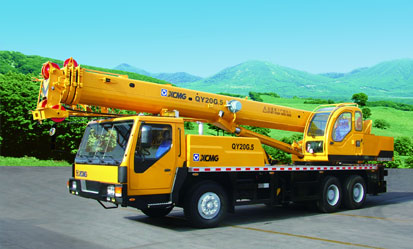

QY20G.5II

REQUEST A QUOTE

You have choose: Hydraulic truck crane - QY20G.5II

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
QY20G.5II

Dimension

Unit

QY20G.5

Overall length

mm

12400

Overall width

mm

2500

Overall height

mm

3320

Weight





Total weight in travel

kg

26020

Front axle load

kg

6900

Rear axle load

kg

19120

Power





Engine model


 SC8DK260Q3  WD615.327

Engine rated power

kW/(r/min)

 192/2200    198/2200

Engine rated torque

N.m/(r/min)

 1100/1400      1150/1400

Travel





Max. travel speed

km/h

75

Min. turning diameter

m

20

Min. ground clearance

mm

275

Approach angle

°

16

Departure angle

°

13

Max. grade ability

%

24

Fuel consumption for 100km

L

≈35

Main performance





Max. rated total lifting capacity

t

20

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

3.385

Max. lifting torque

kN.m

860

Base boom

m

10.06

Fully extended boom

m

32.76

Fully extended boom+jib

m

42.12

Longitudinal outrigger span

m

4.97

Lateral outrigger span

m

5.4

Working speed





Boom luffing time

s

75

Boom full extension time

s

95

Max. swing speed

r/min

3

Max. speed of main winch (single rope)

m/min

100

Max. speed of aux. winch (single rope)

m/min

100
