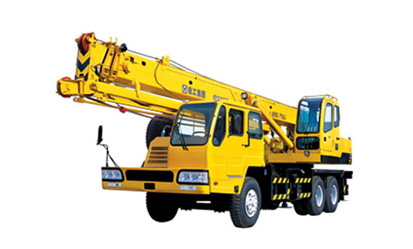

Hydraulic truck crane

QY25E

REQUEST A QUOTE

You have choose: Hydraulic truck crane - QY25E

*Region

*Country

*Your Name

*Email

*Mobile Number

*Verification Code See the verification code Click refresh!

Classificatory	Item		Unit	Parameter
Engine	Model		D6114ZLQ5B
Outline dimension	Overall length		mm	12380
	Overall width		mm	≤2500
	Overall height		mm	3500
	Wheel base	Axle 1, Axle 2	mm	4025
	Wheel base	Axle 2, Axle 3	mm	1350
Mass	Total mass in travel state		kg	26400
	Axle load	Axle 1	kg	6530
	Axle load	Axle 2, Axle 3	kg	19870
Travel performance	Travel speed	Max. travel speed	km/h	≥63
	Travel speed	Min. stable travel speed	km/h	≤4
	Turning diameter	Min. turning diameter	m	≤19
	Turning diameter	Min. turning diameter at boom tip	m	≤22
	Min. ground clearance		mm	≥273
	Approach angle		(°)	≥21
	Departure angle		(°)	≥10
	Braking distance (at 30km/h with full load)		m	≤9.5
	Max. grade-ability		％	≥23
	Fuel consumption for 100km		L	36

Main Technical Data for Lifting Operation

Classificatory	Item				Unit	Parameter
Lifting performance	Max. total rated lifting capacity				t	25
	Min. rated working radius				m	3
	Turning radius at turntable tail				m	≤3.56
	Max. load moment		Base boom		kN.m	806
			Fully extended boom		kN.m	521
			Fully extended boom + Jib		kN.m	280
	Outrigger span		Longitudinal		m	4.8
	Outrigger span		Lateral		m	6
	Lifting height		Base boom		m	≥10.5
			Fully extended boom		m	≥31.5
			Fully extended boom + Jib (jib offset 5°)		m	≥39.2
			Fully extended boom + Jib (jib offset 30°)		m	≥38
Working speed	Boom raising time				s	≤72
	Boom full extension time				s	≤115
	Max. swing speed				r/min	3
	Hoist speed	Main winch		Full load	m/min	≥90
	(single line at 3rd layer)	Main winch		No load	m/min	≥120
		Aux. winch		Full load	m/min	≥90
		Aux. winch		No load	m/min	≥120
Noise limit	Crane exterior noise				dB (A)	≤120
Noise limit	At seated position				dB (A)	≤90
