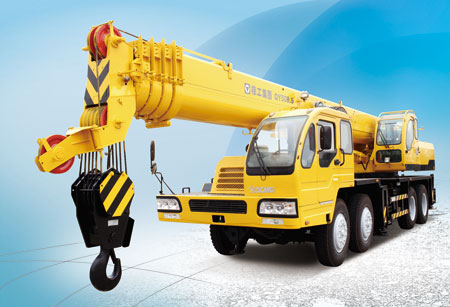

QY50B.5

More excellent performance
• The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
More reliable quality
• Adopt the classic K series jib telescoping technique, working safer and more reliable.
• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
• The new power steering mechanism adopts hydraulic power design, which makes the steering light, flexible, and precise, and ensures the safety of the truck.
• The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
• The perfect integration of the design and structure realizes the automation of welding, which is more reliable.
Easier to operate
• The high efficient and energy efficient load sensing hydraulic system is sensitive to operate and precise to control, having good slight mobility.
• Optimize the control levers, which is easier to operate.
• The cab adopts orthodrome front windscreen, having wider operating views.
Easier to maintain
• The optimizing design of the pipeline traces makes the layout more scientific and reasonable, greatly reducing the dismantling and installing time of the pipelines and the maintenance expense.
• Completely upgrade the electrical system. Adopt anti-creep connector clips, greatly prolonging the service life of the parts.
• Adopt K series rope anti-disorder technique, improving the lifting efficiency, reducing the labor intensity, and prolonging the service life of the steel rope.
• The telescoping steel wire rope oriented and protective device avoids the steel wire rope out of the track and broken.
• Fully covered walking plate supplies a platform for the maintenance, and effectively protects the parts of the machine.
More energy-efficient and environmental friendly
• Adopt double industrial automation control engine, featuring strong power and energy efficiency.
• Under the economical mode, it can meet the engine power requirement of the normal lifting work. Under the high power mode, it can meet the requirement of the high challenge and high efficient lifting work.
• Adopt the high power radiator, avoiding the system from bad cooling, solving the problem of oil overheating, and prolonging the service life of the hydraulic oil.
• Adopt the advanced matching technique, which makes the design more scientific. It can reduce the consumption of the mechanism, prolong the service life of the machine, and has high residual value.

DimensionUnitQY50B.5
Overall lengthmm13890
Overall widthmm2800
Overall heightmm3440
Weight
Total weight in travelkg42000
Load of axle 1, 2kg18000
Load of axle 3, 4kg26000
Power
Engine model
WD615.338
Engine rated powerkW/(r/min)247/2200
Engine rated torqueN.m/(r/min)1350/1400
Travel
Max. travel speedkm/h80
Min. turning diameterm24
Min. ground clearancemm327
Approach angle°18
Departure angle°11
Max. grade ability%35
Fuel consumption for 100kmL40
Main performance
Max. rated total lifting capacityt50
Min. rated working radiusm3
Turning radius at turntable tailm3.71
Max. lifting torquekN.m1800
Base boomm11.56
Fully extended boomm42.58
Fully extended boom+ jibm55.8
Longitudinal outrigger spanm5.93
Lateral outrigger spanm6.9
Working speed
Boom luffing times88
Boom full extension times180
Max. swing speedr/min2
Max. speed of main winch (single rope)m/min110
Max. speed of aux. winch (single rope)m/min110
