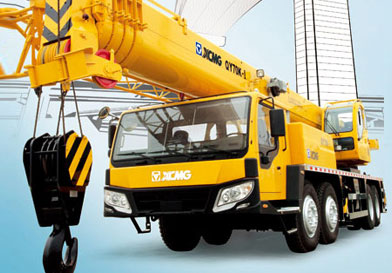

QY70K-I(Hydraulic control)

• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
• The working condition expands twice. Newly add 5t counterweight.


DimensionUnitQY70K-I
Overall lengthmm13930
Overall widthmm2800
Overall heightmm3575
Weight
Total weight in travelkg43000(without 1t vice counterweight)
Front axle loadkg17000
Rear axle loadkg26000
Power
Engine model
 WD615.338(domestic III)
Engine rated powerkW/(r/min) 276/2200
Engine rated torqueN.m/(r/min)1500/1400
Travel
Max. travel speedkm/h80
Min. turning diameterm24
Min. ground clearancemm327
Approach angle°19
Departure angle°13
Max. grade ability%40
Fuel consumption for 100kmL45
Main performance
Max. rated total lifting capacityt70
Min. rated working radiusm3000
Turning radius at turntable tailm3.55
Max. lifting torquekN.m2303
Base boomm11.6
Fully extended boomm44.5
Fully extended boom+ jibm59.5
Longitudinal outrigger spanm6.1
Lateral outrigger spanm7.3
Working speed
Boom luffing times60
Boom full extension times ≤150
Max. swing speedr/min ≥2.0
Max. speed of main winch (single rope) (no load)m/min ≥130
Max. speed of aux. winch (single rope) (no load)m/min≥108
