Hydraulic truck crane
Hydraulic truck crane

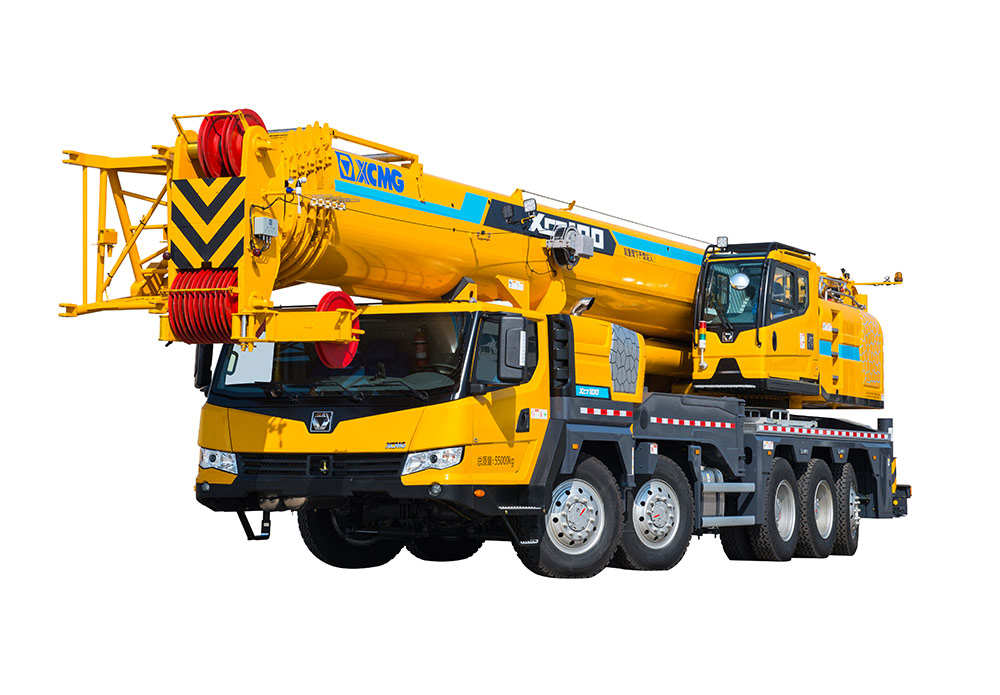

XCT100
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Project | Unit | Parameter |
| Dimension | ||
| Overall Length | (mm) | 15600 |
| Overall Width | (mm) | 3000 |
| Overall Height | (mm) | 3870 |
| Wheel Base | (mm) | 1920+3500+1420+1505 |
| Wheel Tread | (mm) | 2449/2449/2315/2315/2449 |
| Weight | ||
| Travelling Weight | (kg) | 54990 |
| Axle Load | (kg) | 20000/26000/9000 |
| Kinetic Parameter | ||
| Engine Model | WP6G240E330/OM906LA.E3A/2 WP12.430E50/ISM11E5 440 | |
| Rated Power | (kw/(r/min)) | 176/2300 / 190/2200 316/1900 / 324/1900 |
| Rated Torque | (N.m/(r/min)) | 860/1200-1700 / 1000/1200-1600 2060/1100-1400 / 2080/1200 |
| Travelling Parameter | ||
| Travelling | ||
| Max.Travelling Speed | (km/h) | 90 |
| Min.Stable Travelling Speed | (km/h) | 2.5～3 |
| Turning | ||
| Min Diameter of Turning Circle | (m) | 23 |
| Min Diameter of Turning Circle of Boom Head | (m) | 26.8 |
| Max Gradeability | (％) | 45 |
| Minimum Ground Clearance | (mm) | 326 |
| Approach Angle | (°) | 18 |
| Departure Angle | (°) | 13 |
| Braking Length | (m) | ≤10 |
| Fuel Consumption Per Hundred Kilometers | (L) | 70/65 |
| Main Performance Parameters | ||
| Max.Rated Lifting Capacity | (t) | 100 |
| Min.Rated Range | (m) | 3 |
| Max. Lifting Moment of Basic Boom | (kN·m) | 4704 |
| Turning Radius of Platform Tail | (mm) | 4970 |
| Outriggers | ||
| Lengthways | (m) | - |
| Transverse | (m) | - |
| Max. Lifting Height | ||
| Basic Boom | (m) | 13.9 |
| Full-extend boom | (m) | 63.3 |
| Full-extend boom + jib | (m) | 92.6 |
| Full-extend boom + jib+ extension section | - | - |
| Boom Length | ||
| Basic Boom | (m) | 13.5 |
| Full-extend boom | (m) | 64 |
| Full-extend boom + jib | - | 82..1 |
| Full-extend boom + jib+ extension section | (m) | 96.1 |
| Working Speed | ||
| Max Rotating Speed | (r/min) | 2 |
| Lifting Speed | ||
| Main Hoisting Mechanism | (s) | 135 |
| Auxiliary Hoisting Mechanism | 105 | |
| Boom Extend-retract Time | ||
| Full-extend | (s) | 480 |
| Full-retract | (s) | - |
| Luffing Time | ||
| Full Extension Time | (s) | 60 |
| Full Retract Time | (s) | - |
| Outrigger--horizontal | ||
| Open Simultaneously--horizontal | (s) | 40 |
| Close Simultaneously--horizontal | (s) | 40 |
| Outrigger--Vertical | ||
| Open Simultaneously | (s) | 50 |
| Close Simultaneously | (s) | - |
