Hydraulic truck crane
Hydraulic truck crane

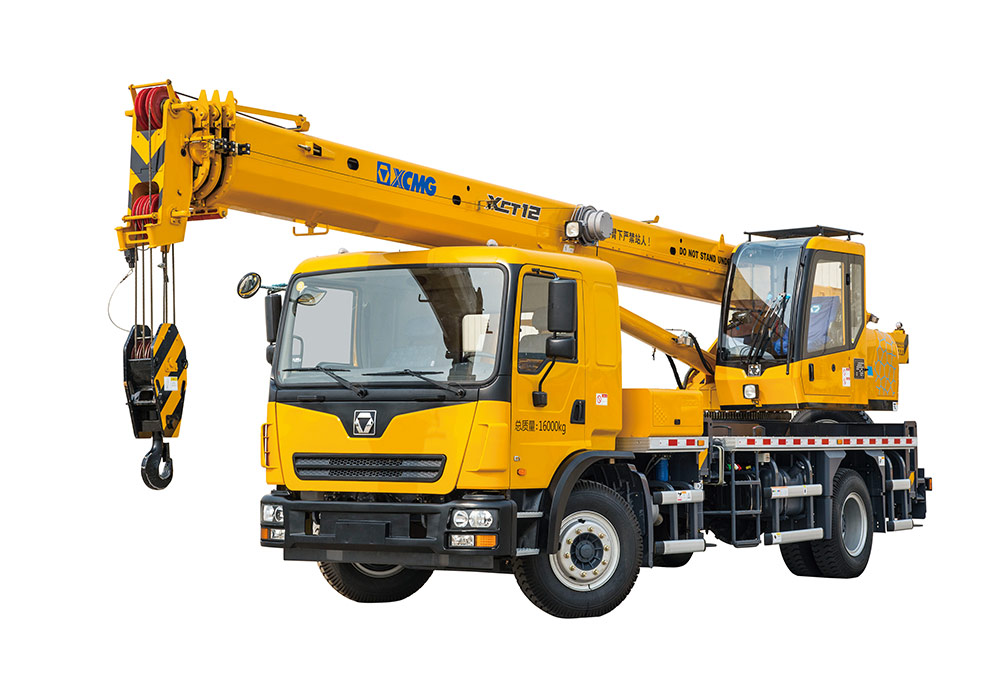

XCT12L4
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Project | Unit | Parameter |
| Dimension | ||
| Overall Length | (mm) | 10900 |
| Overall Width | (mm) | 2500 |
| Overall Height | (mm) | 3550 |
| Wheel Base | (mm) | 4770 |
| Wheel Tread | (mm) | Meichi：2076/1830 Hande：2048/1830 |
| Weight | ||
| Travelling Weight | (kg) | 16000 |
| Axle Load | (kg) | 6000+10000 |
| Kinetic Parameter | ||
| Engine Model | Shangchai SC7H230Q4 Weichai WP6.220E40 | |
| Rated Power | (kw/(r/min)) | Shangchai 170/2300 Weichai 162/2300 |
| Rated Torque | (N.m/(r/min)) | Shangchai 900/1400 Weichai 850/1400-1600 |
| Travelling Parameter | ||
| Travelling | ||
| Max.Travelling Speed | (km/h) | 90 |
| Min.Stable Travelling Speed | (km/h) | 2～3 |
| Turning | ||
| Min Diameter of Turning Circle | (m) | 18 |
| Min Diameter of Turning Circle of Boom Head | (m) | 22 |
| Max Gradeability | (％) | 41 |
| Minimum Ground Clearance | (mm) | 250 |
| Approach Angle | (°) | 21 |
| Departure Angle | (°) | 13 |
| Braking Length | (m) | 10 |
| Fuel Consumption Per Hundred Kilometers | (L) | 25 |
| Main Performance Parameters | ||
| Max.Rated Lifting Capacity | (t) | 12 |
| Min.Rated Range | (m) | 3 |
| Max. Lifting Moment of Basic Boom | (kN·m) | 482.5 |
| Turning Radius of Platform Tail | (mm) | 2570 |
| Outriggers | ||
| Lengthways | (m) | 4.57 |
| Transverse | (m) | 5.5 |
| Max. Lifting Height | ||
| Basic Boom | (m) | 9.5 |
| Full-extend boom | (m) | 30.9 |
| Full-extend boom + jib | (m) | 38.1 |
| Full-extend boom + jib+ extension section | - | - |
| Boom Length | ||
| Basic Boom | (m) | 9.45 |
| Full-extend boom | (m) | 30.5 |
| Full-extend boom + jib | - | 37.5 |
| Full-extend boom + jib+ extension section | (m) | - |
| Working Speed | ||
| Max Rotating Speed | (r/min) | 3 |
| Lifting Speed | ||
| Main Hoisting Mechanism | (s) | 130 |
| Auxiliary Hoisting Mechanism | 130 | |
| Boom Extend-retract Time | ||
| Full-extend | (s) | 58 |
| Full-retract | (s) | - |
| Luffing Time | ||
| Full Extension Time | (s) | 38 |
| Full Retract Time | (s) | - |
| Outrigger--horizontal | ||
| Open Simultaneously--horizontal | (s) | ≤20 |
| Close Simultaneously--horizontal | (s) | ≤15 |
| Outrigger--Vertical | ||
| Open Simultaneously | (s) | ≤25 |
| Close Simultaneously | (s) | ≤20 |
