Hydraulic truck crane
Hydraulic truck crane

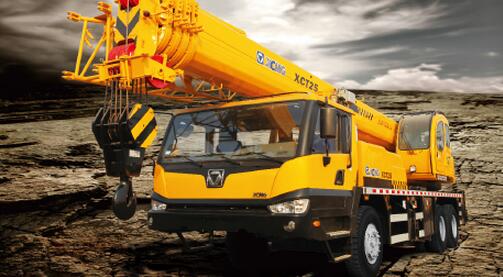

XCT25E
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Dimensions | Unit | |
|---|---|---|
| Overall length | Mm | 12500 |
| Overall width | Mm | 2500 |
| Overall height | Mm | 3385 |
| Weight | ||
| Dead weight in travel state | Kg | 32000 |
| Front axle load | Kg | 6800 |
| Rear axle load | Kg | 24800 |
| Power | ||
| Engine model | SC9DF300Q3 WD615.329 | |
| Engine rated output | Kw(r/min) | 221/2200 213/2200 |
| Engine rated torque | N.m(r/min) | 1250 1160 |
| Travel | ||
| Max.travel speed | Km/h | 80 |
| Min. turning diameter | M | ≤22 |
| Min. ground clearance | Mm | 275 |
| Approach angle | 。 | 18 |
| Departure angle | 。 | 13 |
| Max. gradeability | % | 40 |
| Fuel consumption of per 100km | L | 37 |
| Lifting performance | ||
| Max. total rated lifting load | T | 25 |
| Min. rated working radius | M | 3 |
| Turning radius at swing table tail | Mm | 3260 |
| Base boom max. load moment | Kn.m | 961 |
| Base boom | M | 10.4 |
| Full-extend boom | M | 40 |
| Full-extend boom+Jib | m | 48.3 |
| Outrigger longitudinal distance span | M | 5.36 |
| Outrigger lateral distance span | M | 6 |
| Working speed | ||
| Boom elevating time | S | 68 |
| Boom telescoping time | S | 150 |
| Max. slewing speed | r/min | 2.5 |
| Main winch max. speed(single line) | m/min | 120 |
| Auxiliary winch max.speed(single line) | m/min | 120 |
