Hydraulic truck crane
Hydraulic truck crane

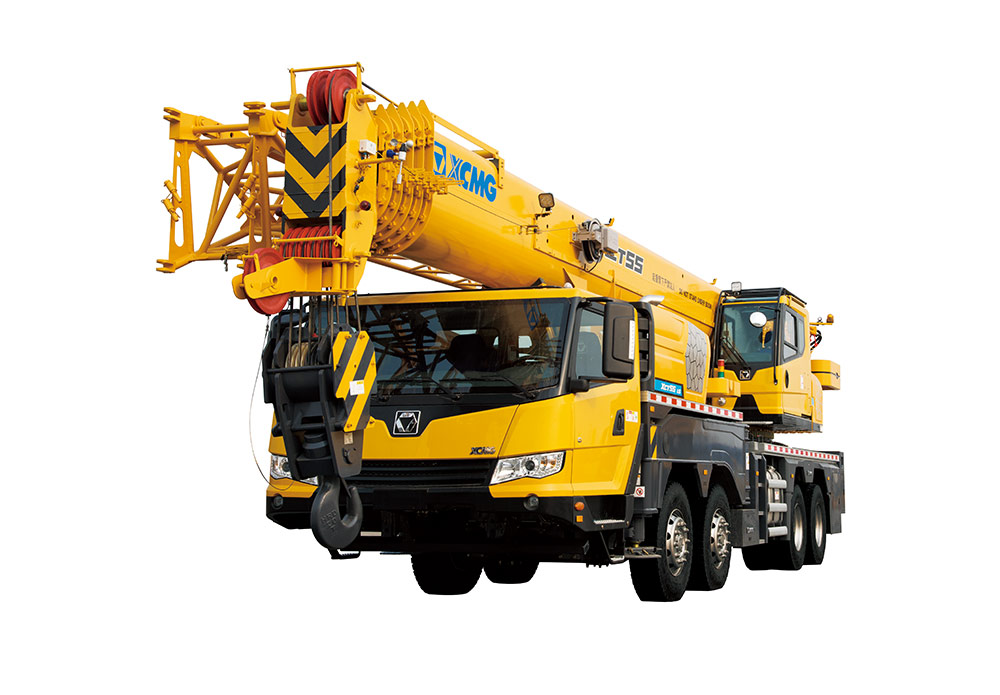

XCT55L6
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Project | Unit | Parameter |
| Dimension | ||
| Overall Length | (mm) | 13650 |
| Overall Width | (mm) | 2540 |
| Overall Height | (mm) | 3770 |
| Wheel Base | (mm) | 1470+3700+1350 |
| Wheel Tread | (mm) | 2124/2124/1834/1834 |
| Weight | ||
| Travelling Weight | (kg) | 44000 |
| Axle Load | (kg) | 9000/9000/26000 |
| Kinetic Parameter | ||
| Engine Model | MC11.36-40/SC10E340Q4 | |
| Rated Power | (kw/(r/min)) | 268/1900 251/1900 |
| Rated Torque | (N.m/(r/min)) | 1800/1000-1400 1550/1300 |
| Travelling Parameter | ||
| Travelling | ||
| Max.Travelling Speed | (km/h) | 90 |
| Min.Stable Travelling Speed | (km/h) | 2.5～3 |
| Turning | ||
| Min Diameter of Turning Circle | (m) | 24 |
| Min Diameter of Turning Circle of Boom Head | (m) | 26.2 |
| Max Gradeability | (％) | 45 |
| Minimum Ground Clearance | (mm) | 303.5 |
| Approach Angle | (°) | 16 |
| Departure Angle | (°) | 13 |
| Braking Length | (m) | ≤10 |
| Fuel Consumption Per Hundred Kilometers | (L) | 35 |
| Main Performance Parameters | ||
| Max.Rated Lifting Capacity | (t) | 55 |
| Min.Rated Range | (m) | 3 |
| Max. Lifting Moment of Basic Boom | (kN·m) | 2058 |
| Turning Radius of Platform Tail | (mm) | 3830 |
| Outriggers | ||
| Lengthways | (m) | 7.3 |
| Transverse | (m) | 8.035 |
| Max. Lifting Height | ||
| Basic Boom | (m) | 10.7 |
| Full-extend boom | (m) | 49.1 |
| Full-extend boom + jib | (m) | 63.8 |
| Full-extend boom + jib+ extension section | - | - |
| Boom Length | ||
| Basic Boom | (m) | 11.2 |
| Full-extend boom | (m) | 50 |
| Full-extend boom + jib | - | 66 |
| Full-extend boom + jib+ extension section | (m) | - |
| Working Speed | ||
| Max Rotating Speed | (r/min) | 2 |
| Lifting Speed | ||
| Main Hoisting Mechanism | (s) | 130 |
| Auxiliary Hoisting Mechanism | 130 | |
| Boom Extend-retract Time | ||
| Full-extend | (s) | 350 |
| Full-retract | (s) | - |
| Luffing Time | ||
| Full Extension Time | (s) | 50 |
| Full Retract Time | (s) | - |
| Outrigger--horizontal | ||
| Open Simultaneously--horizontal | (s) | 30 |
| Close Simultaneously--horizontal | (s) | 20 |
| Outrigger--Vertical | ||
| Open Simultaneously | (s) | 30 |
| Close Simultaneously | (s) | 20 |
