Hydraulic truck crane
Hydraulic truck crane

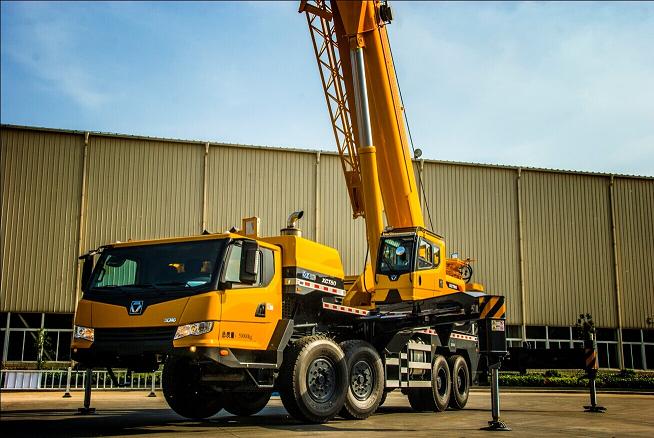

XCT80
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Project | Unit | Parameter |
| Dimension | ||
| Overall Length | (mm) | 14770 |
| Overall Width | (mm) | 2800 |
| Overall Height | (mm) | 3890 |
| Wheel Base | (mm) | 1470+4000+1350 |
| Wheel Tread | (mm) | 2380/2380/2075/2075 |
| Weight | ||
| Travelling Weight | (kg) | 50000 |
| Axle Load | (kg) | 24000/26000 |
| Kinetic Parameter | ||
| Engine Model | WP12.375NMC11.39-30 | |
| Rated Power | (kw/(r/min)) | 276/1900 |
| Rated Torque | (N.m/(r/min)) | 1800/1000-1400 1900/1000-1400 |
| Travelling Parameter | ||
| Travelling | ||
| Max.Travelling Speed | (km/h) | 80 |
| Min.Stable Travelling Speed | (km/h) | 3 |
| Turning | ||
| Min Diameter of Turning Circle | (m) | 24 |
| Min Diameter of Turning Circle of Boom Head | (m) | 29 |
| Max Gradeability | (％) | 40 |
| Minimum Ground Clearance | (mm) | 371 |
| Approach Angle | (°) | 17 |
| Departure Angle | (°) | 15.5 |
| Braking Length | (m) | ≤10 |
| Fuel Consumption Per Hundred Kilometers | (L) | 45 |
| Main Performance Parameters | ||
| Max.Rated Lifting Capacity | (t) | 80 |
| Min.Rated Range | (m) | 3 |
| Max. Lifting Moment of Basic Boom | (kN·m) | 3060 |
| Turning Radius of Platform Tail | (mm) | 4670 |
| Outriggers | ||
| Lengthways | (m) | 8.075 |
| Transverse | (m) | 7.9 |
| Max. Lifting Height | ||
| Basic Boom | (m) | 12.8 |
| Full-extend boom | (m) | 47.5 |
| Full-extend boom + jib | (m) | 64 |
| Full-extend boom + jib+ extension section | - | - |
| Boom Length | ||
| Basic Boom | (m) | - |
| Full-extend boom | (m) | - |
| Full-extend boom + jib | - | - |
| Full-extend boom + jib+ extension section | (m) | - |
| Working Speed | ||
| Max Rotating Speed | (r/min) | - |
| Lifting Speed | ||
| Main Hoisting Mechanism | (s) | 110 |
| Auxiliary Hoisting Mechanism | - | |
| Boom Extend-retract Time | ||
| Full-extend | (s) | - |
| Full-retract | (s) | - |
| Luffing Time | ||
| Full Extension Time | (s) | 140 |
| Full Retract Time | (s) | - |
| Outrigger--horizontal | ||
| Open Simultaneously--horizontal | (s) | 20 |
| Close Simultaneously--horizontal | (s) | 20 |
| Outrigger--Vertical | ||
| Open Simultaneously | (s) | - |
| Close Simultaneously | (s) | 50 |
