Hydraulic truck crane
Hydraulic truck crane

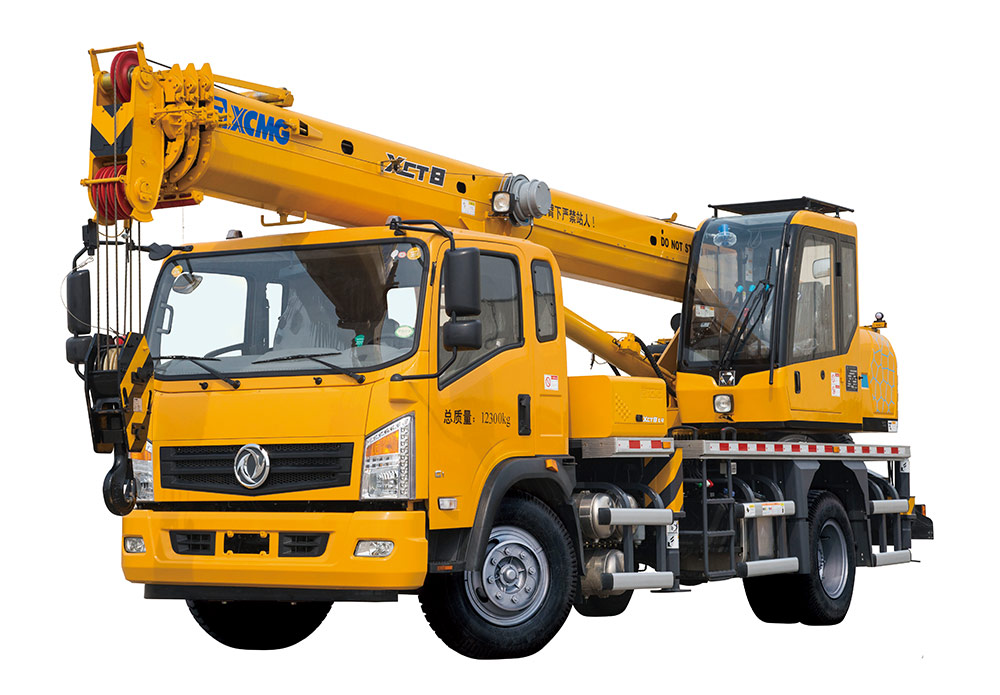

XCT8L4
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Project | Unit | Parameter |
| Dimension | ||
| Overall Length | (mm) | 9375 |
| Overall Width | (mm) | 2400 |
| Overall Height | (mm) | 3240(Dongfeng)/3170 (FAW) |
| Wheel Base | (mm) | 4400 |
| Wheel Tread | (mm) | Dongfeng：1810/1800 FAW：1800/1740 |
| Weight | ||
| Travelling Weight | (kg) | 12300(Dongfeng) /12100 (FAW) |
| Axle Load | (kg) | Dongfeng：4150/8150 FAW：4000/8100 |
| Kinetic Parameter | ||
| Engine Model | Dongfeng：YC4E140-42 FAW: BF4M2012-14E4 | |
| Rated Power | (kw/(r/min)) | Dongfeng：103/2600 FAW：106/2500 |
| Rated Torque | (N.m/(r/min)) | Dongfeng：430/（1300～1600）FAW：500/1500 |
| Travelling Parameter | ||
| Travelling | ||
| Max.Travelling Speed | (km/h) | 90 |
| Min.Stable Travelling Speed | (km/h) | 2～3 |
| Turning | ||
| Min Diameter of Turning Circle | (m) | 16 |
| Min Diameter of Turning Circle of Boom Head | (m) | 18.3 |
| Max Gradeability | (％) | 35 |
| Minimum Ground Clearance | (mm) | 260 |
| Approach Angle | (°) | 18 |
| Departure Angle | (°) | 13 |
| Braking Length | (m) | 10 |
| Fuel Consumption Per Hundred Kilometers | (L) | 18 |
| Main Performance Parameters | ||
| Max.Rated Lifting Capacity | (t) | 8 |
| Min.Rated Range | (m) | 3 |
| Max. Lifting Moment of Basic Boom | (kN·m) | 302 |
| Turning Radius of Platform Tail | (mm) | 2327 |
| Outriggers | ||
| Lengthways | (m) | 4.3 |
| Transverse | (m) | 4.7 |
| Max. Lifting Height | ||
| Basic Boom | (m) | 8.5 |
| Full-extend boom | (m) | 25.6 |
| Full-extend boom + jib | (m) | - |
| Full-extend boom + jib+ extension section | - | - |
| Boom Length | ||
| Basic Boom | (m) | 8 |
| Full-extend boom | (m) | 25.5 |
| Full-extend boom + jib | - | - |
| Full-extend boom + jib+ extension section | (m) | - |
| Working Speed | ||
| Max Rotating Speed | (r/min) | 3 |
| Lifting Speed | ||
| Main Hoisting Mechanism | (s) | 130 |
| Auxiliary Hoisting Mechanism | - | |
| Boom Extend-retract Time | ||
| Full-extend | (s) | 40 |
| Full-retract | (s) | - |
| Luffing Time | ||
| Full Extension Time | (s) | 28 |
| Full Retract Time | (s) | - |
| Outrigger--horizontal | ||
| Open Simultaneously--horizontal | (s) | ≤16 |
| Close Simultaneously--horizontal | (s) | ≤16 |
| Outrigger--Vertical | ||
| Open Simultaneously | (s) | ≤17 |
| Close Simultaneously | (s) | ≤17 |
