Mining truck
Mining truck

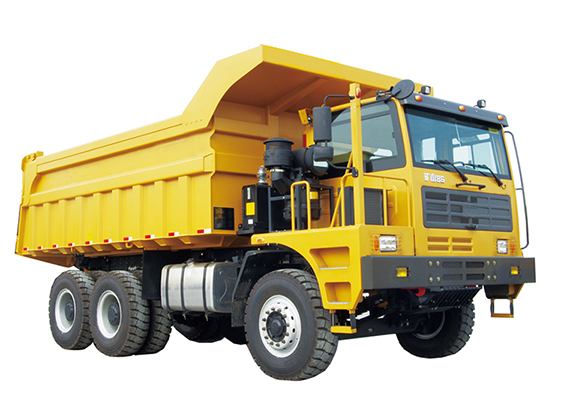

MT6031A
- FEATURES
- PARAMETERS
As the most popular product of CANMAX, MT6031A was the first Chinese off-highway dump truck in the 60 ton range.
It is designed for large open-pit mine. With its good reliability, reasonable price and high availability, it provides total versatility to access the entire jobsite.
Over 1,500 units are serving the industry by the first half of 2016.
Safe and comfortable
ROPS&FOPS cab, good braking performance, Multi-stage shock absorbing design.
Reliable and durable
Wider chassis, larger cross-section frame, mining oriented gearbox, heavy load axle, frame-structured dump body.
Economic and efficiency
Hydraulic confluence technology improves the heat dissipation, lower failure and higher utilization rate.
Easy for maintenance
Facilitation design, people-oriented (fabricated turnover seat, split type side limit block, hydraulic oil tankchange-over valve, split typeexhaust pipe).
| Model | MT6031A |
|---|---|
| Curb Weight（kg） | 29000 |
| GrossWeight（kg） | 86000 |
| PayLoad（t） | 57 |
| Engine | WP12G430E310 / WD12G420E211 |
| Gearbox | 7DS200K |
| Axle Load | 19T+35T+35T |
| Tyre | 14.00-25-36PR |
| Max. Speed（km/h） | 44 |
| Rock Dump Body Volume-heaped（m） | 31 |
| Tailgate Type Dump Body Volume-heaped（m） | 35 |
| Overall Dimension（Long×wide×highmm） | 9070×3450×3960 |
