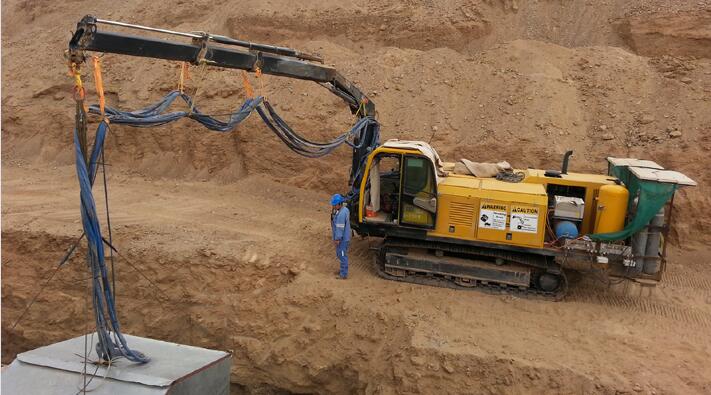

PMHY160

UNDERCARRIAGE

Hydrostatic driven gives enough power for traveling on even more grade slope of the job site.

Track counter rotation on the spot give more maneuverable operation of the tractor.

High ground clearance and low ground pressure allows working in any type of tough conditions.


ENGINE

Equipped the Cummins 6BTA5.9-C seris disesl engine.

High quality and easy maintainance, ensuring sustained power output for the welding procedure demand.

Enlarge cooling system and cold area starter device can be install while using in the tropical or frozen area.


GENERATOR

Through a direct-drive mode from the engine,Stanford generator is employed for the pay welder’s generating system.

The generator is bushless maintainance free type ensuring a longagevity of optimal performance.


HYDRUALIC SYSTEM

American Sauer hydraulic system is installed in the equipment for power both the travelling of tractor and crane operation.

Pump is directly connected to the drive train after the engine and generator.


ELECTRICAL CABINET

Power source form the generating system is controlled and distributed at the electrical cabinet.

The cabinet is water proof and equipped with a big area of shatterproof glass for clear and easy reading of the volt, ampere and frequency meters.

Emergency breaker is standard equip of this unit for the people and equipments’s safety.


ENCLOSED CABIN

Big room space, max glass area gives the operator comfortable operating condition.

Lever controls of both the traveling and crane in the cabin.

Safety switch equipment at the side of the driver’s seat to prevents tractor from running during the generating work.


CRANE

The HIAB seris hydraulic crane is mounted onto the tractor for lifting the welding tent and other welding accessories.

Crane operation can be arranged both inside and outside the cabin.


MAINTAINANCE

 The cover of the payerlder is designed for easy maintenance.


TRANSPORT

We have prepared a thoughtful packing solution for land transportation and sea transportation.

ITEMSPARAMETERS
ModelPMHY160
Overall dimensions L*W*H 6310×3000×3330(mm)
Operating weight13000kg
Ambient temperature -20~40
Length of track on ground3086 mm
Track gauge2150mm
Ground pressure34.2kPa
Maximum grade ability25°
Ground clearance570mm
Travel speedlow: 0~3.47km/h;high: 0~6.4km/h
Welder positions4~6
Engine
MakeCummins 6CTA8.3-C260
Rated power/speed194kW@2200rpm
Electric generator
MakeStanford
Rated capacity160kVA
Rated VoltageAC 380/220V
Rated frequency50Hz
Hydralic system
Make Rexroth/danfoss
Max pressure35Mpa
Max flow270L/min
Electrical cabinet
Power output380V×2,10kW in total;220V×2,2.2 kW in total
Emergency BreakerYes
Crane
ModelHIAB 111B-2 CLX
Max lifting capacity9.9t•m
Max reach distance7.8 m
Max lifting height10 m
Boom luffing Angle——
Boom rotation410°
