Motor grader
Motor grader

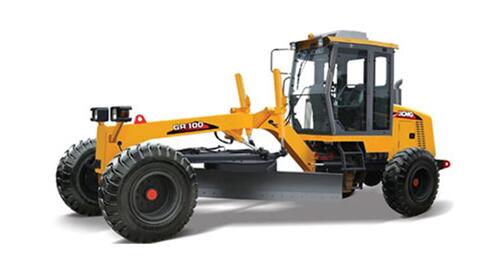

GR100
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Basic specification | |
|---|---|
| Engine model | 4BT3.9 |
| Rated power/speed | 75/2400kw/rpm |
| Dimension(LxWxH) | 6880×2375×3150mm |
| Operating weight(Standard) | 7000kg |
| Performance specification | |
| Travelling speed ,forward | 5、10、20、39km/h |
| Travelling speed ,reverse | 8、25km/h |
| Tractive force(f=0.75) | 41.6KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 350KPa |
| Working hydraulic pressure | 16MPa |
| Transmission pressure | 1.3～1.8MPa |
| Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | 17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 5.9m |
| Biade | |
| Maximum lift above ground | 300mm |
| Maximum depth of cutting | 350mm |
| Maximum blade position angle | 45° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 120° |
| Moldboard width X height | 3048×500mm |
