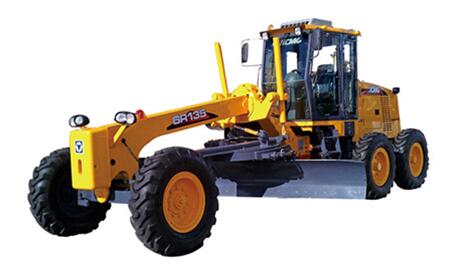

GR135
REQUEST A QUOTE
- FEATURES
- PARAMETERS
Basic specification | |
|---|---|
| Engine model | 6BT5.9 |
| Rated power/speed | 100/2200kw/rpm |
| Dimension(LxWxH) | 8015×2380×3050mm |
| Operating weight(Standard) | 11000kg |
Performance specification | |
| Travelling speed ,forward | 5、8、13、20、30、42km/h |
| Travelling speed ,reverse | 5、13、30km/h |
| Tractive force(f=0.75) | 61.3KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 300kPa |
| Working hydraulic pressure | 16MPa |
| Transmission pressure | 1.3～1.8MPa |
Operating specification | |
| Max. steering angle of front wheels | ±49° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 16 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 6.6m |
Biade | |
| Maximum lift above ground | 410mm |
| Maximum depth of cutting | 535mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3710×610mm |
