Motor grader
Motor grader

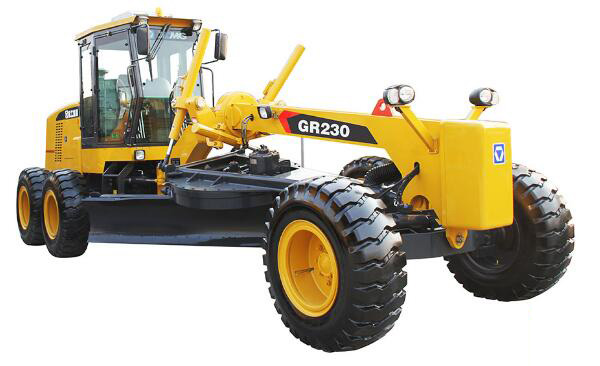

GR230
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | Parameters | Unit | |
| General Data | Engine model | SC8D200G2B1 | - |
| Rated power | 147/2300 | (kw/rpm) | |
| Dimension (standard) | 8932×2625×3420 | (mm) | |
| weight (standard) | 16000 | (kg) | |
| Performance Data | Front speed | 5、8、11、19、23、38 | (km/h) |
| Reverse Speed | 5、11、23 | (km/h) | |
| Break force f=0.75 | 87 | (kN) | |
| max grade ability | 20% | % | |
| mini turning radius | 7.3 | (m) | |
| Blade | Max lifting height | 450 | (mm) |
| Max depth | 500 | (mm) | |
| Max lean angles | 90 | ° | |
| Cutting angle | 28 —70 | ° | |
| Swing Angle | 360 | ° | |
| blade lenght&height | 4270×610mm | (mm) | |
