Pipe layers

SB100

REQUEST A QUOTE

You have choose: Pipe layers - SB100

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS

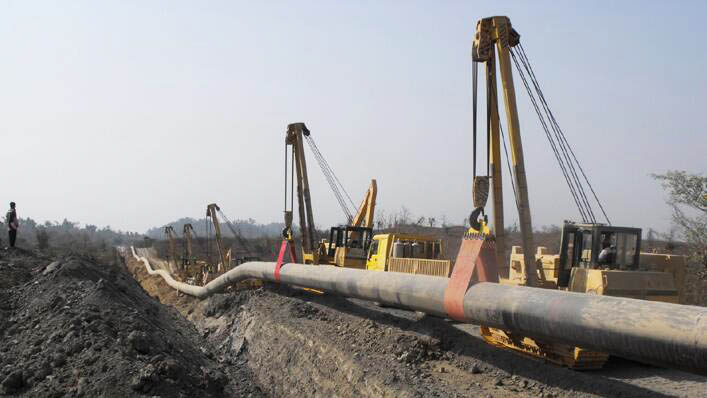

SB100

ENGINE

The Cummins, NT855-C360 direct injection and turbocharged engine gives sustained power and high torque rise that is

required for the more tough jobs.

UNDERCARRIAGE

With high stability and low ground pressure, the rigid and boxed frame undercarriage meet the requirement of all

type of terrains, giving a dependable and longevity of service in all harsh conditions.

Squared A-frame section boom built for adequate support for the most demanding lifting stress, quick release hinge

pin for easy boom detachment and maintenance.Free Fall System When the button is engaged,the load free-falls and then immediately stops when the button is released.

Automatic Boom Kick-Out

This system will ensure you will never bend another boom.

Anti Two Block

Sets a minimum distance between the top block and the hook block,preventing collisions between them.

Anti Tipping System

Prevents tipping by calculating the maximum load that can be lifted.

ELECTRONIC OVER HYDRAULIC

Freefall system, boom kick-out system and anti-two block plus,

Anti-tipping system

Prevents tipping by calculating the maximum load that can be lifted.

CABIN

Good visibility to work area and top of the boom with a sky window on the roof, ROPS can be installed as the optional

equipment.

CONTROL

Hydraulic joystick operation provides simultaneous, precise control of the load and boom functions with one hand.single lever control for the counter weight in and out.

COUNTER WEIGHT

Hydraulically retracted and extended, four bar linkage structure counterweight adds more stability and balance

during the lifting work, low compact design provides excellent right side visibility.

WINCHES

Two independently controlled hydraulic winches drive the boom and hook systems, brake are applied automatically when control lever returned to neutral position.


ITEMSPARAMETERS
ModelSB100
Max lifting capacity100t
Rated lifting capacity85t
Operating weight(approximate)58t
Overall dimensions (with boom)5630×6030×11857mm
Overall dimensions(boom removed)5630 ×3400 ×3540mm
Ground pressure88.6kPa
Ground clearance550mm
Maximum grade ability25°
Environmental ConditionOperating temperature:-40℃~+60℃、3600m below
Engine
ModelCummins NTA855-C360
Rated power257kw
Rated speed2000rpm
Number of cylinders6
Travel system
operating modehandle lever
Travel speed[Forward]3.6/6.6/11.5
Travel speed[Reverse]4.4/7.8/13.5
Length of track on ground3730mm
Track gauge2540mm
Width of shoes860mm
Number of track rollers(each side)9x2
PIPELAYING EQUIPMENT
Luffing modewirerope
operating modehydraulic joystick
Length of boom9600/11000mm
Max lifting height8110/9437mm
Boom luffing Angle0~86 °
Hook speed0~7.0m/min
Hook line8
Luffing time50s
Boom line5
Counterweight2700kg×4(removable)
Operationhydraulic cylinder activated
Standards
Applied standardISO8813-92、Q/GDR 101008—2014
