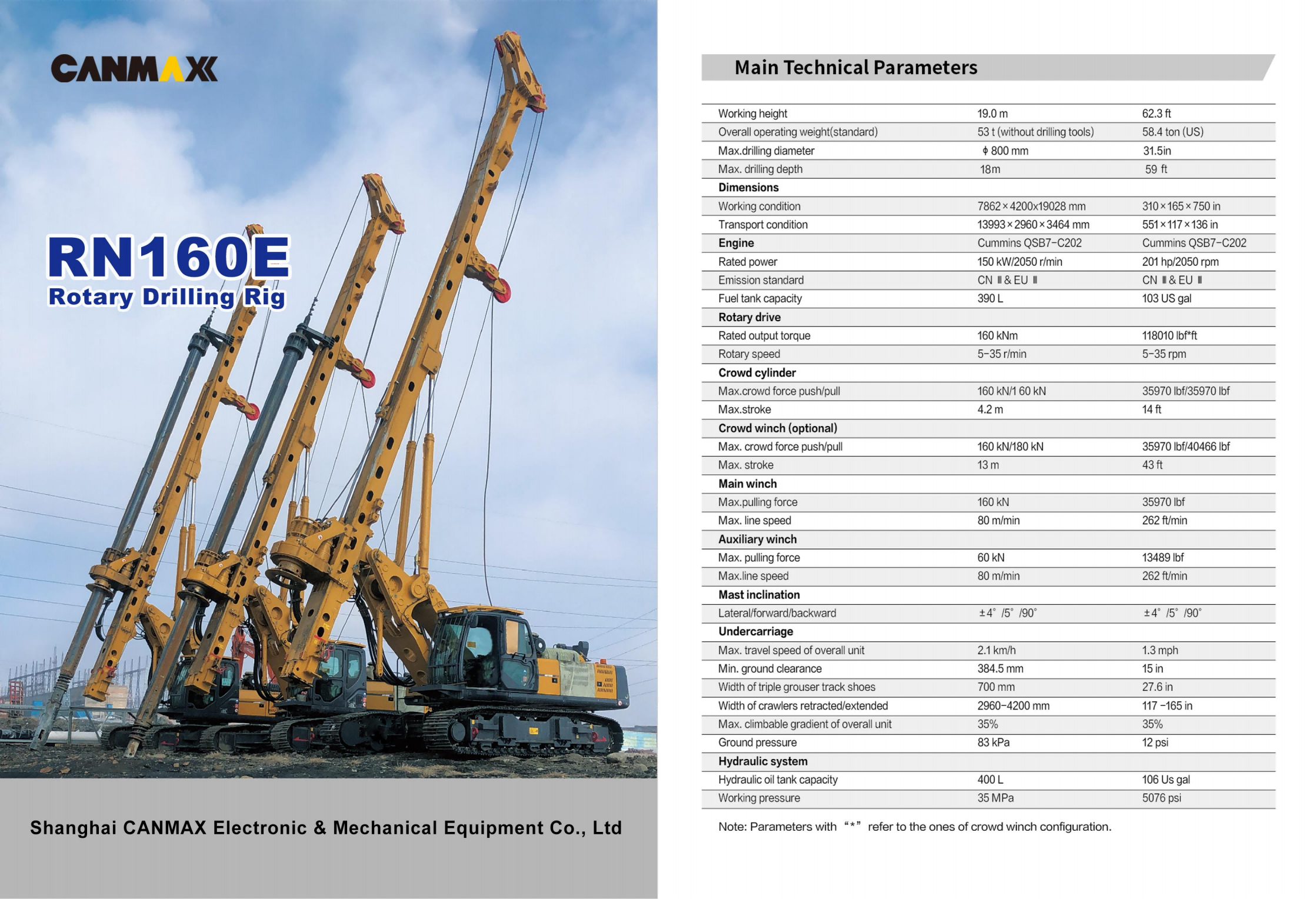

Main Technical Parameters

Working height

19.0 m

62.3 ft

Overall operating weight(standard)

53 t (without driling tools)

58.4 ton (us)

Max.drilling diameter

Φ800 mm

31.5in

Max. driling depth

18m

59 ft

Dimensions

Working condition

7862x4200x19028 mm

310x165x750 in

Transport condition

13993x 2960x3464 mm

551x117x136 in

Engine

Cummins QSB7-C202

Cummins QSB7-C202

Rated power

150 kW/2050 r/min

201 hp/2050 rpm

Emission standard

CN III&EU III

CN III&EU III

Fuel tank capacity

390 L

103 US gal

Rotary drive

Rated output torque

160 kNm

118010 lbf*ft

Rotary speed

5-35 r/min

5-35rpm

Crowd cylinder

Max.crowd force push/pull

160 kN/ 60 kN

35970 lbf/35970 lbf

Max.stroke

4.2 m

14ft

Crowd winch (optional)

Max. crowd force push/pull

160 kNM80 kN

35970lbf/40466 lbf

Max. stroke

13 m

43ft

Main winch

Max.pulling force

160 kN

35970 lbf

Max. line speed

80 m/min

262 ft/min

Auxiliary winch

Max. puling force

60 kN

13489 Ibf

Max.line speed

80 m/min

262 ft/min

Mast inclination

Lateral/forward/backward

±4° /15° /90°

±4° /5° /90°

Undercarriage

Max. travel speed of overall unit

2.1km/h

1.3 mph

Min. ground clearance

384.5 mm

15 in

Width of triple grouser track shoes

700 mm

27.6 in

Width of crawlers retracted/extended

2960-4200 mm

117 -165in

Max. climbable gradient of overall unit

35%

35%

Ground pressure

83 kPa

12 psi

Hydraulic system

Hydraulic oil tank capacity

400L

106 Us gal

Working pressure

35 MPa

5076 psi

*This product allows OEM (customizable customer logo)
