Rotary drilling rig

Rotary drilling rig

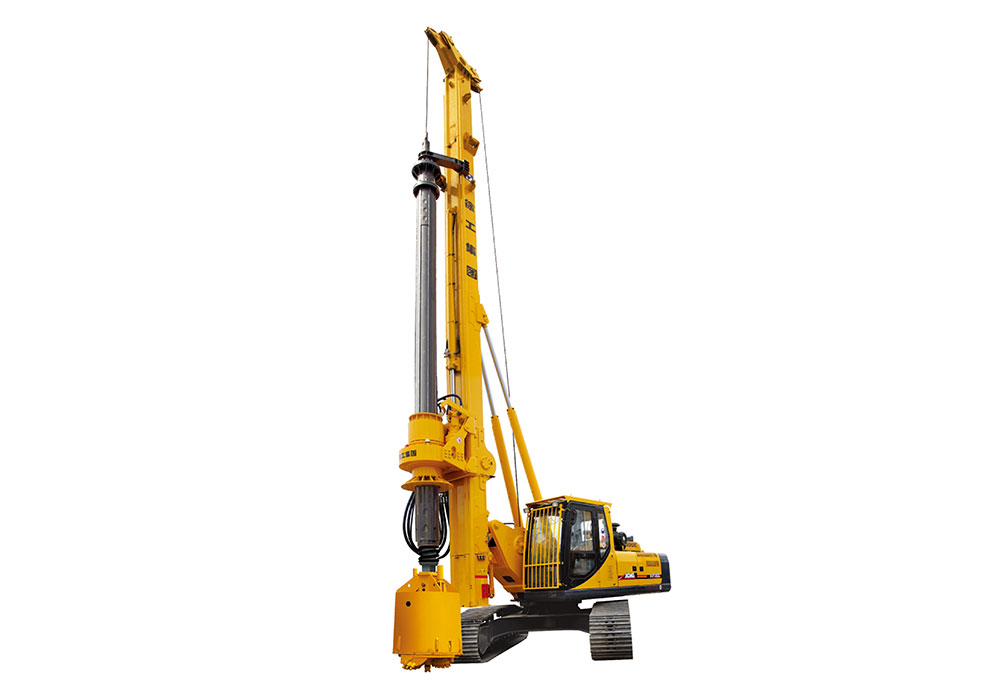

XR180D

REQUEST A QUOTE

You have choose: Rotary drilling rig - XR180D

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
XR180D

It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability;

It adopts the front-located single-rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost;


Cummins electric control turbo-supercharged engine is used. It complies with Euro III emission standard ,In addition, it has strong power, which is sufficient to satisfy the construction on the plateau. Its noise is up to the national standard;


Using full electronic control technology of CAN bus, Improves the reliability of the whole vehicle and simplify hydraulic line, Fully reflects the people, machine, electricity and liquid integration;


Winch-crowd and sleeve-driven functions are available for selection to  CFA, hydraulic casing oscillator, DTH hammer satisfy various needs of the users;


It is equipped with a centralized lubrication system as standard configuration; maintenance is easier;

The machine obtains CE certfication of TüV Rheinland group.


Project
Max.Drilling Diameter
Uncased
Cased
Max.Drilling Depth
Dimension
Working condition L × W × H
Transportation condition L × W × H
Overall Drilling Weight
Engine
Model
Rated Power
Hydraulic System
Working pressure
Rotary Drive
Max. output torque
Rotary speed
Spin off speed
Pull-Down Cylinder
Max.pull-down piston push
Max.pull-down piston pull
Max.pull-down piston stroke
Crowd Winch
Max.pull-down piston push
Max.pull-down piston pull
Max. pull-down piston stroke
Main Winch
Max.pulling force
Max. single-rope speed
Diameter of the steel wire rope
Auxiliary Winch
Max. Pulling force
Max. single-rope speed
Diameter of the steel wire rope
Drilling mast
Left/right inclination of mast
Front inclination of mast
Rotary table slewing angle
Traveling
Max. traveling speed
Max.grade ability
Crawler
Track shoe width
Distance between tracks
The length of crawler
Average ground pressure
Unit
(mm)
(mm)
(m)
(mm)
(mm)
(t)
-
(kW)
(MPa)
(kN.m)
(r/min)
(r/min)
(kN)
(kN)
(mm)
(kN)
(kN)
(mm)
(kN)
(m/min)
(mm)
(kN)
(m/min)
(mm)
(°)
(°)
(°)
(km/h)
(%)
(mm)
(mm)
(mm)
(kPa)
Parameter
φ1800
φ1500
60
8350×4200×20480
14255×2960×3450
56
CUMMINS QSB6.7-C260
194/2200
35
180
7~27
102
160
180
5000
-
-
-
180
65
28
50
70
16
42432
5
360
2.3
35
700
2960~4200
5140
93.6
