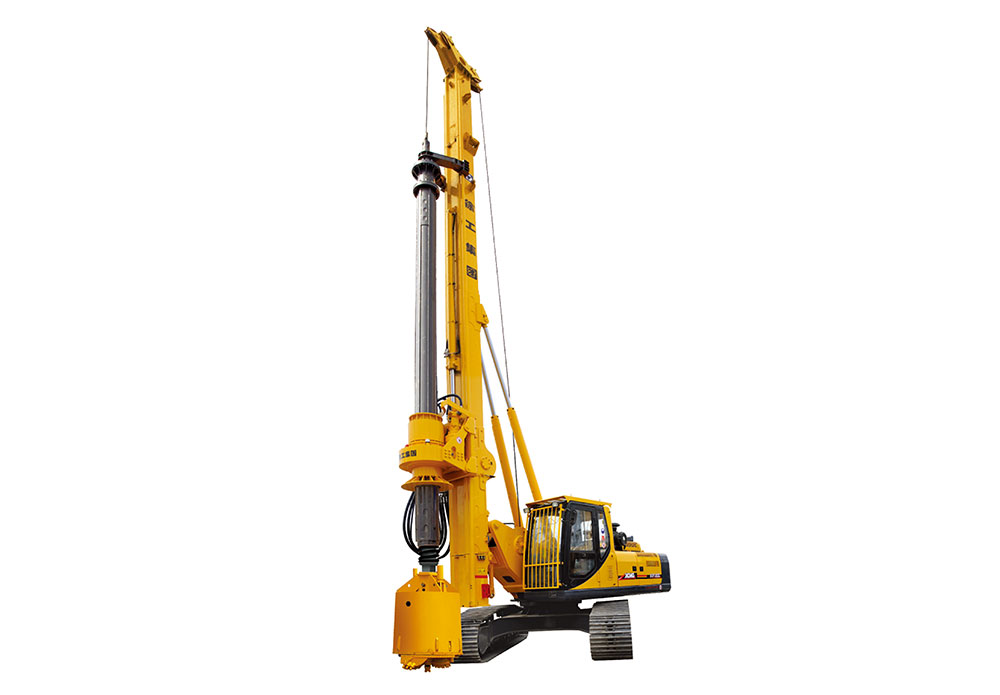

XR320D

REQUEST A QUOTE

You have choose: Rotary drilling rig - XR320D

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
XR320D

It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability.

It adopts the luffing mechanism of large triangle form to ensure the stability of construction of big holes and deep piles in hard formation.


It adopts the front-located single-rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost.


It adopts the imported Cummins turbo-supercharged engine with three gears. Users can select corresponding gears according to different working conditions to achieve the effect of a drilling rig driven by three engines.


Normal mode and entering-rock mode of unit head are available for operation in soil and rock to improve the construction efficiency.


Winch-pressurized and sleeve-driven functions are available for selection to satisfy various needs of the users.

It is equipped with a centralized lubrication system as standard configuration to provide more convenient maintenance and make the machine a good reliability .


Project
Max.Drilling Diameter
Uncased
Cased
Max.Drilling Depth
Dimension
Working condition L × W × H
Transportation condition L × W × H
Overall Drilling Weight
Engine
Model
Rated Power
Hydraulic System
Working pressure
Rotary Drive
Max. output torque
Rotary speed
Spin off speed
Pull-Down Cylinder
Max.pull-down piston push
Max.pull-down piston pull
Max.pull-down piston stroke
Crowd Winch
Max.pull-down piston push
Max.pull-down piston pull
Max. pull-down piston stroke
Main Winch
Max.pulling force
Max. single-rope speed
Diameter of the steel wire rope
Auxiliary Winch
Max. Pulling force
Max. single-rope speed
Diameter of the steel wire rope
Drilling mast
Left/right inclination of mast
Front inclination of mast
Rotary table slewing angle
Traveling
Max. traveling speed
Max.grade ability
Crawler
Track shoe width
Distance between tracks
The length of crawler
Average ground pressure
Unit
(mm)
(mm)
(m)
(mm)
(mm)
(t)
-
(kW)
(MPa)
(kN.m)
(r/min)
(r/min)
(kN)
(kN)
(mm)
(kN)
(kN)
(mm)
(kN)
(m/min)
(mm)
(kN)
(m/min)
(mm)
(°)
(°)
(°)
(km/h)
(%)
(mm)
(mm)
(mm)
(kPa)
Parameter
φ2500
φ2200
90
10480×4800×25155
16550×3500×3500
92.8
CUMMINS QSM11-C400
298/2100
35
320
5~20
-
250
250
6000
330
350
16000
280
75
36
100
65
20
42464
5
360
1.5
35
800
3500~4800
5052
115
